AccuEnergy - AcuPanel 9104X-P4

Product Description

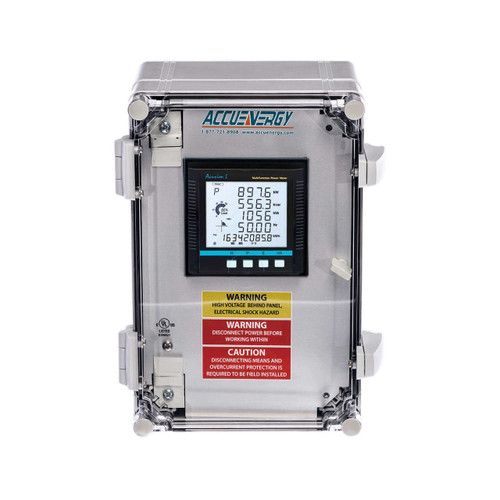

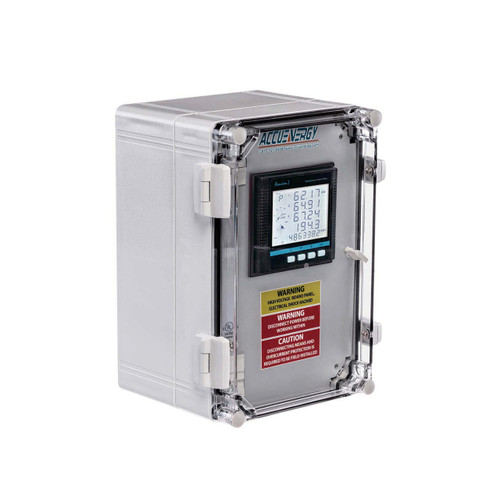

Accuenergy’s AcuPanel 9100 series pre-wired panel enclosure provides a complete plug n’ play energy metering solution. Designed for Acuvim II and Acuvim-L series multifunction power and energy meters, AcuPanel eliminates both time-consuming and costly design and installation. With simple mounting and wiring, you will have a complete metering solution right next to your switchgear.

AcuPanel provides a perfect solution for retrofit projects where metering space is not pre-designed in electrical distribution panel. The factory pre-wired meter and enclosure will greatly save the cost for parts and labor with minimized installation time. Moreover, frustrating wiring errors which lead to serious false data will be eliminated to create a seamless process from installation to power and energy monitoring.

• Standard pre-wired enclosure includes:
• Terminal blocks for current transformer input
• Shorting block for current transformer
• Terminals blocks for voltage input
• 3 Industrial-grade fuses

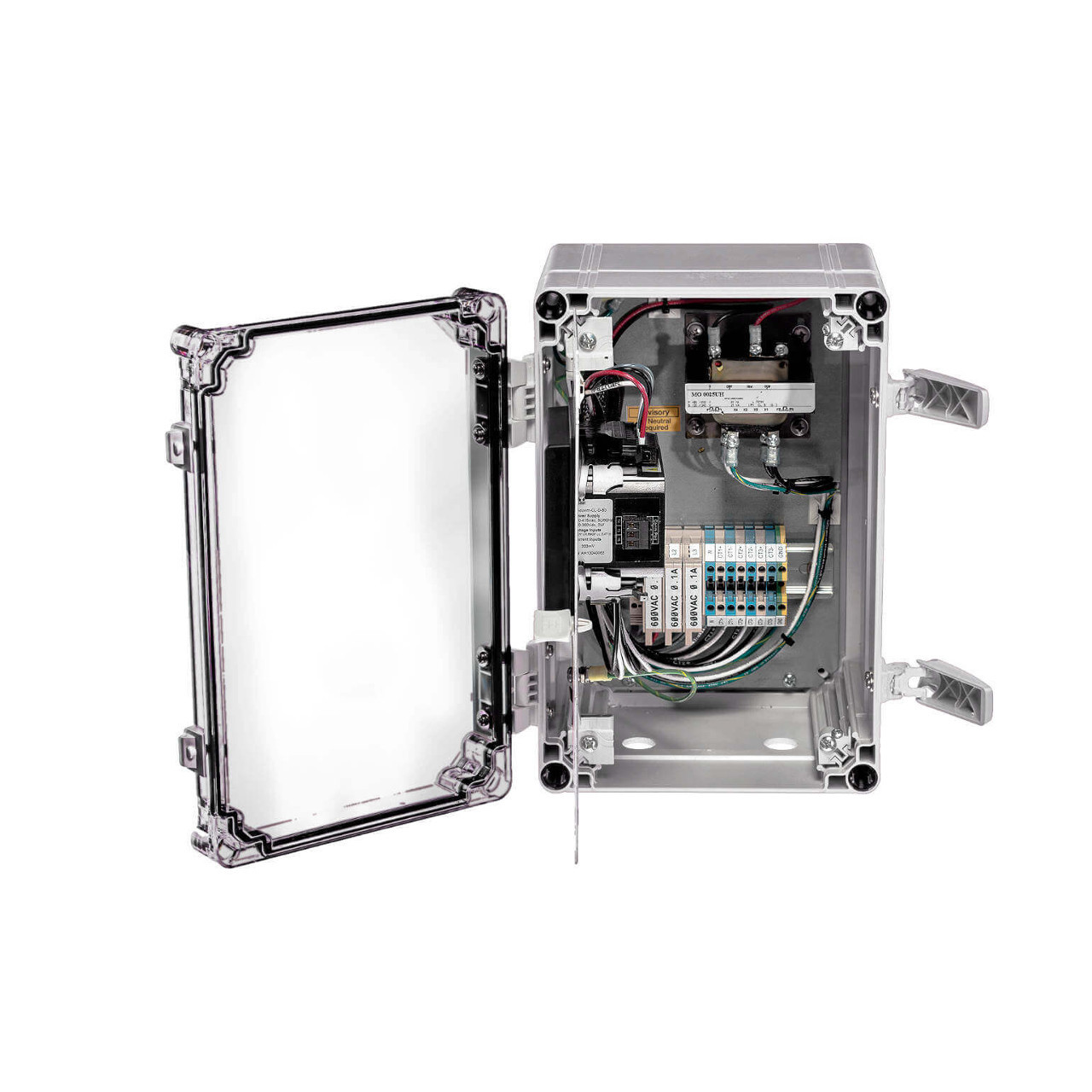

Inside the locking door of the AcuPanel are factory-assembled fuses and terminal blocks clearly labeled for a quick and effortless connection. At the bottom of the AcuPanel sits two pluggable pre-cut holes that allow for wires to be fed through the panel to the circuit blocks without any additional modifications being needed.
