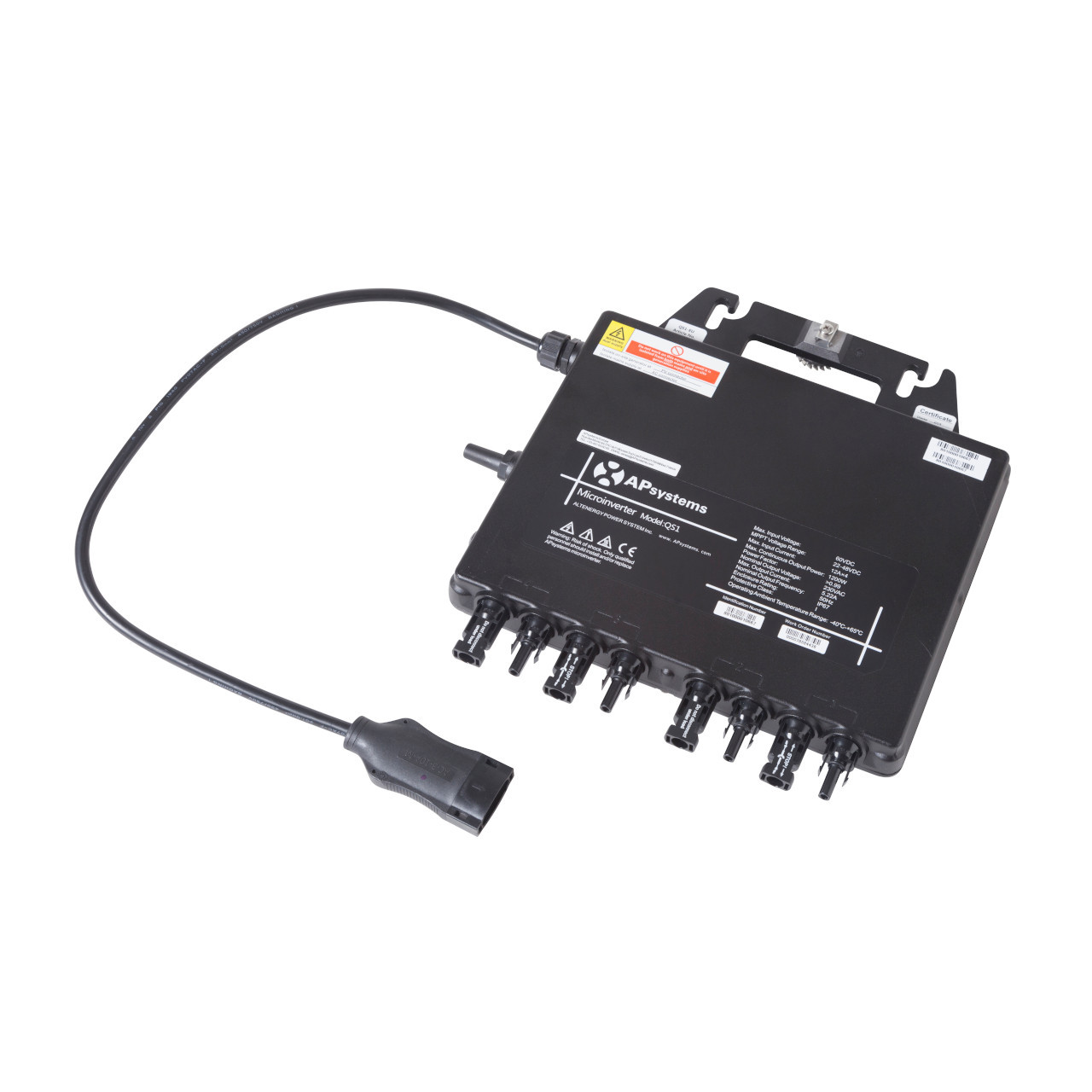

  • APsystems - QS1-NA-CA - Front
  • APsystems - QS1-NA-CA - Back
  • APsystems - QS1-NA-CA - Front APsystems - QS1-NA-CA - Back

    APsystems

    APsystems - QS1-NA-CA


    SKU:
    5100628
    MPN:
    109002
    Availability:
    No Longer Available
    Category:
    Legacy
    Power:
    1.2kW
    Details:
    Y Cable, 1200W, 208/240V

    No Longer Available

    Share This Article

    • Overview
    • Documentation
    • Specs
    • Dimensions
    • Warranty
    • Videos

    Product Description

    POWER QUADRUPLED

    APsystems QS1, a four-module, high-power microinverter for residential applications.

    A new design for APsystems, the QS1 offers 300% faster installation time, while offering the highest peak output power and up to 3X faster transmission speed than conventional microinverters. A wider MPPT voltage range will result in a greater energy harvest for homeowners.

    The first of its kind, the QS1 is designed to accommodate today’s high output PV panels, offer enhanced capability and significantly reduce installation time and costs while providing an unprecedented level of power with four independent MPPT per channel.

    Common AC trunk cabling with the dual-module YC600, offers flexible mix-and-match compatibility on the same circuit and with the same gateway (ECU-R or ECU-C).

    The unit also builds on the successful APsystems line of multi-module microinverters, offering reduced logistics costs and integrated communication and connection features.

    • Quad microinverter with independent MPPT

    • 300% faster installation than conventional microinverters

    • Highest peak power output of 300W per channel

    • Wider MPPT voltage range for greater energy harvest

    • Accommodates PV panels up to 375W

    • 2.4GHz ZigBee mesh network (3X faster than PLC)

    • Common AC trunk cable w/ YC600; flexible, mix-and-match compatibility

    Warranty Information

    Warranty 10 Years

    Product Videos

    Videos Hide Videos Show Videos

    • DISCONTINUED PRODUCT: QS1 Connection & Cabling 2019 USA

      This video provides information on QS1 inverter/PV module conn...

    • DISCONTINUED PRODUCT: Part 1 - YC600 and QS1 Installation Training

      Part 1 training series video for YC600 and QS1 Microinverters.

    • DISCONTINUED PRODUCT: Part 2 - YC600 and QS1 Site Design & Installation

      Part 2 training series video for YC600 and QS1 Microinverters.

    • DISCONTINUED PRODUCT: Part 3 - YC600 and QS1 Inverter Installation & Cabling

      Part 3 training series video for YC600 and QS1 Microinverters.

    • DISCONTINUED PRODUCT: Part 4 - YC600 and QS1 Final Steps

      Part 4 training series video for YC600 and QS1 Microinverters.

    • Troubleshooting Methods and Helpful Tips for APsystems Installers

      This webinar covers the best practices for professional instal...

    Product Reviews

    Documentation

    Datasheet Datasheet_APsystems_Microinverter-QS1-for-Canada
    Installation Manual Manual_APsystems_Microinverter-QS1-For-Canada
    Certification Certification_APsystems_QS1-QS1A-CANADA-Certification
    App Note AppNote_APsystems_Policy-on-Non-Professional-Self-Installers

    Specs

    Power Output 1.2kW
    AC Voltage 120/240V
    DC Voltage 60V
    Peak Efficiency 96.5%
    CEC Efficiency 99.5%
    Maximum DC Input Voltage 60V
    Maximum Short Circuit DC Input Current 15A x 4
    Maximum Operation DC Input Current 12A x 4
    MPP operating voltage window 22V - 48V
    Connectivity Inverter to ECU - Wireless

    Shipping Dimensions

    Weight: 10.00 LBS
    Width: 30.00 (cm)
    Height: 30.00 (cm)
    Depth: 5.00 (cm)
    ×
    • Recommended
    • APsystems - Y3-wire Bus Cable

      APsystems

      |

      sku: 5100747

      APsystems - Y3-wire Bus Cable - 12AWG

      MSRP:
      Now: $23.00
      Add to Cart
    • APsystems - Y3 Bus Cable T-Conn Cap

      APsystems

      |

      sku: 5100631

      APsystems - Y3 Bus Cable T-Conn Cap

      MSRP:
      Now: $4.00
      Add to Cart
    ×
    Contact Us
    165 Sun Pac Blvd. Unit 3
    Brampton, ON, L6S 5Z6
    Canada

    Phone: 289-276-5279
    Email: sales@frankensolar.ca

    Monday-Friday: 9:00-5:00 ET
    Accounts & Orders
    • Your Lists
    • Login or Sign Up
    • Order Status
    • Shipping & Returns
    Navigate
    • Frankensolar.ca
    • Find an Installer
    • Resources
    • Contact Us
    • About Us
    • Terms & Conditions
    • Privacy Policy
    • Payment Policy
    Join Our Mailing List

    Sign up for our newsletter to receive specials and up to date product news and releases.

    • © Frankensolar Shop
    • | Sitemap
