Name: Ecolibrium - EcoFoot2+ Main Unit
Brand: Ecolibrium Solar
SKU: 5201127
Availability: OutOfStock

Ecolibrium - EcoFoot2+ Main Unit

SKU:

5201127

MPN:

ECO-002_207

Availability:

No Longer Available

Category:

Legacy

Details:

Clamp Sold Separately

Overview
Documentation
Specs
Dimensions
Warranty

Product Description

Installer-Preferred for Low-Slope Roofs

Fast Install, 3rd Party Verified: EcoFoot2+ is rated by DNV-GL with an impressive install speed of 13.5 modules per installer-hour.

System Validation & Reliably: Backed by industry leading third-party validation and in-house testing, EcoFoot2+'s mounting system is designed to last the entire life of your solar project.

Dedicated Product & Installation Support: Both our in-house team of product experts and our field-based team of installation trainers provide you dedicated support on your project.

Simplified & Optimized Solar Racking Component Design: EcoFoot2+'s pre-assembled components and simple installation process ensure your project timelines and labor targets are met.

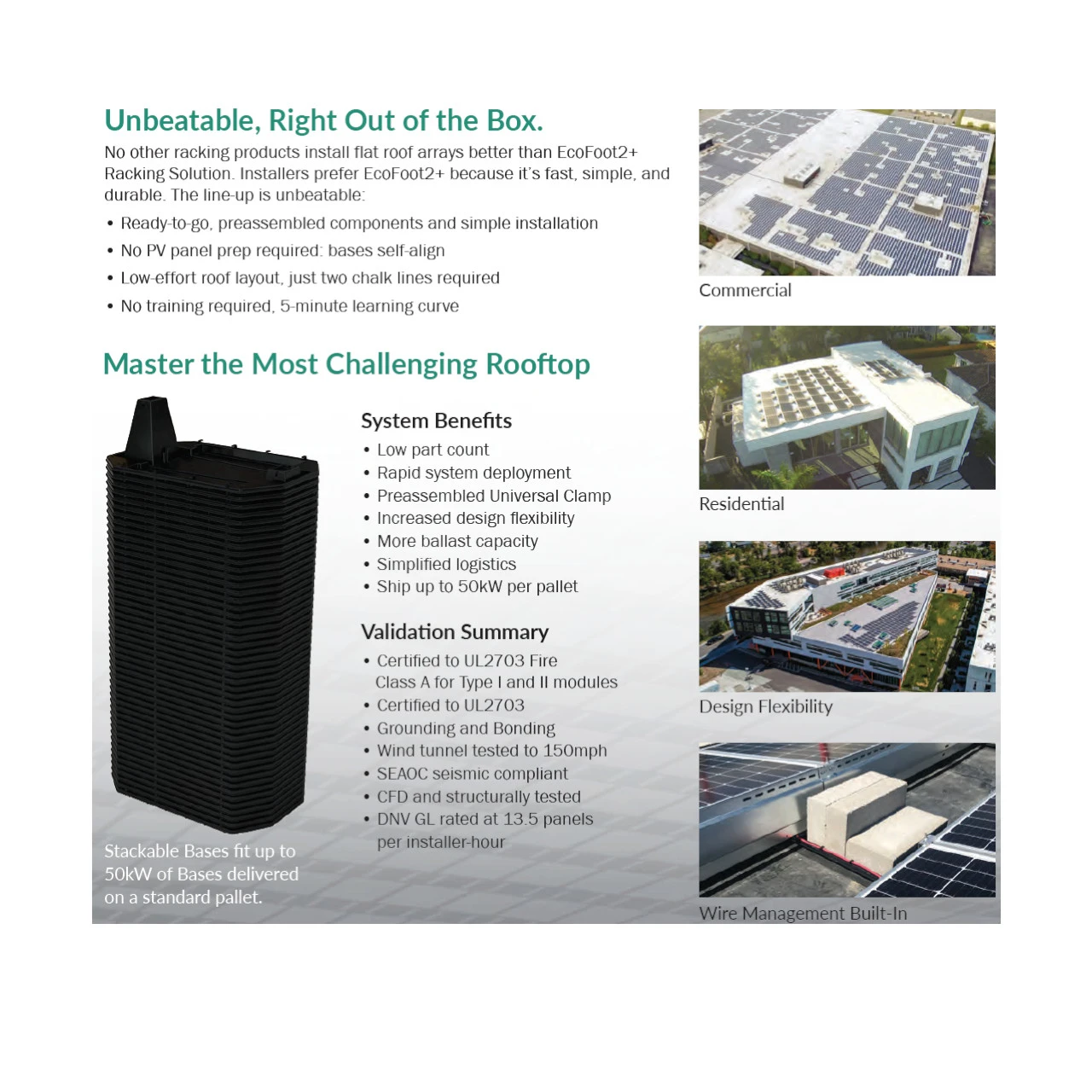

Unbeatable, Right Out of the Box.

No other racking products install flat roof arrays better than EcoFoot2+

Racking Solution. Installers prefer EcoFoot2+ because it’s fast, simple, and

durable. The line-up is unbeatable:

• Ready-to-go, preassembled components and simple installation

• No PV panel prep required: bases self-align

• Low-effort roof layout, just two chalk lines required

• No training required, 5-minute learning curve

Master the Most Challenging Rooftop

System Benefits

• Low part count

• Rapid system deployment

• Preassembled Universal Clamp

• Increased design flexibility

• More ballast capacity

• Simplified logistics

• Ship up to 50kW per pallet

Validation Summary

• Certified to UL2703 Fire

Class A for Type I and II modules

• Certified to UL2703

• Grounding and Bonding

• Wind tunnel tested to 150mph

• SEAOC seismic compliant

• CFD and structurally tested

• DNV GL rated at 13.5 panels

Technical Specifications

Dimensions: 26.5"L x 18.25"W x 8.3"H

Typical System Weight: 3.5–6 lbs. per sq. ft.

Module orientation: Landscape/Portrait

Tilt angle: Landscape 10°/Portrait 5°

Module inter-row spacing: 18.9”

Roof pitch: 0° to 7°

Clamping range: 30-50mm

Ballast requirements: 4" x 8" x 16"

Warranty: 25 years

Slip sheets: not required by Ecolibrium Solar.

If required by roofer, use 20"x29" under Base.

Warranty Information

Warranty

25 Years

Product Videos

Product Reviews

Documentation

Installation Manual	Manual_Install_Ecolibriumn_Solar_Ecofoot2Plus-Install-Guide-V1.7-FINAL-web
Certification	Certificate_Ecolibriumn_Solar_EcoFoot2Plus-UL2703-Bonding-Letter
Warranty PDF	Warranty_Ecolibriumn_Solar_Ecolibrium-EcoFoot2Plus-Limited-Product-Warranty
App Note	AppNote_Ecolibriumn_Solar_Stepped-Array-Clamping-EcoFoot5D-and-EcoFoot2plus-v1.1-FINAL
App Note	AppNote_Ecolibriumn_Solar_EcoFoot2plus-Install-Guide-Appendix-UL2703-Qualification-V1.8-FINAL
App Note	AppNote_Ecolibriumn_Solar_Simple-Solutions-EcoFoot2plus-Bonding-Jumper-Rev1-FINAL-6-30-17
App Note	Accessories_Ecolibriumn_Solar_Accessories-EcolibriumSolar-All-Products
Product Info	Brochure_Ecolibriumn_Solar_ecofoot2plus-sales-sheet-v2-1
Drawing	Drawing_Ecolibriumn_Solar_EcoFoot2Plus-CAD-Block-(11-27-2018)
Certification	Certificate_Ecolibriumn_Solar_EcoFoot2plus-L2-ELS151221-Letter-of-Compliance-Fire

Specs

Shipping Dimensions

Weight:	4.00 LBS
Width:	47.00 (cm)
Height:	22.00 (cm)
Depth:	68.00 (cm)
