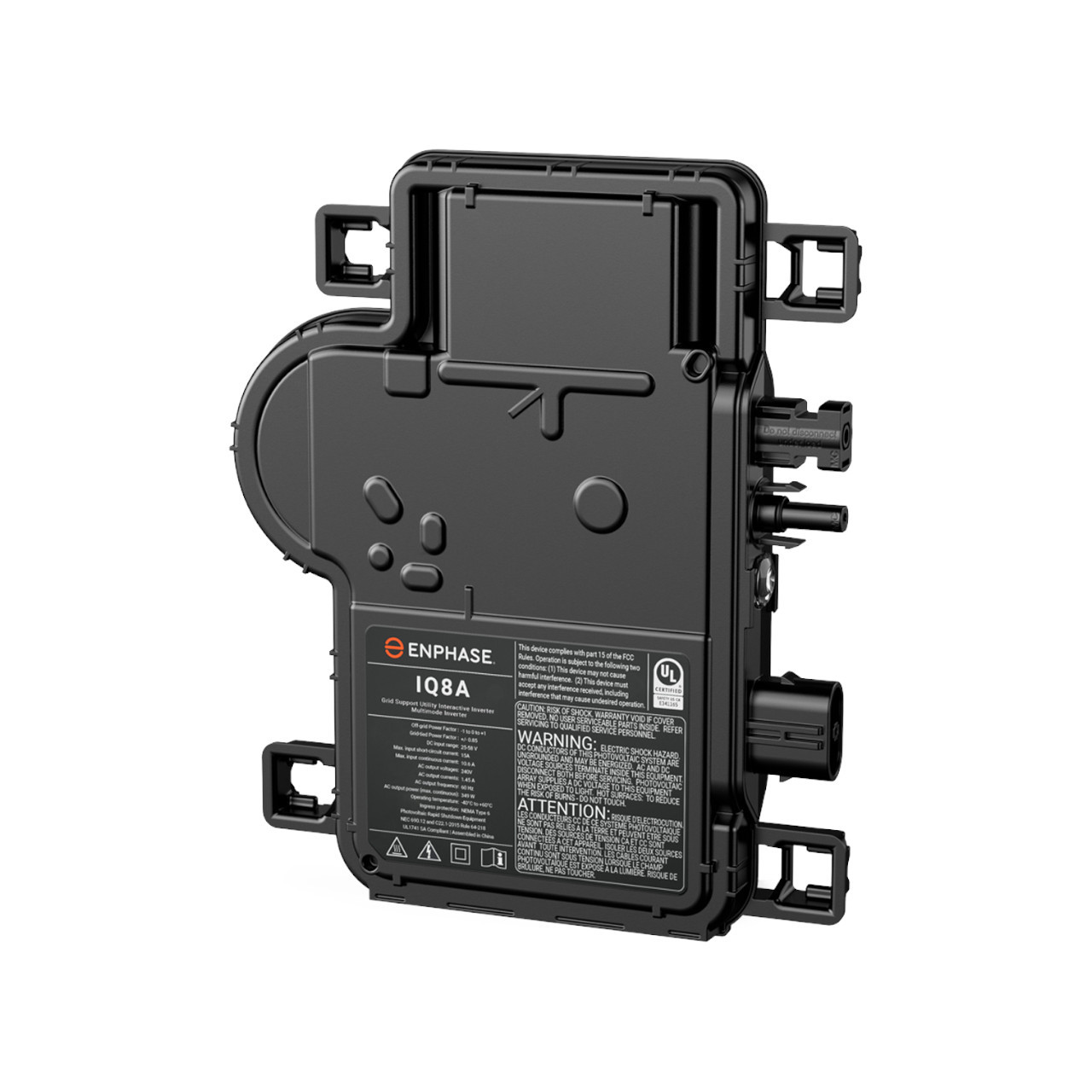

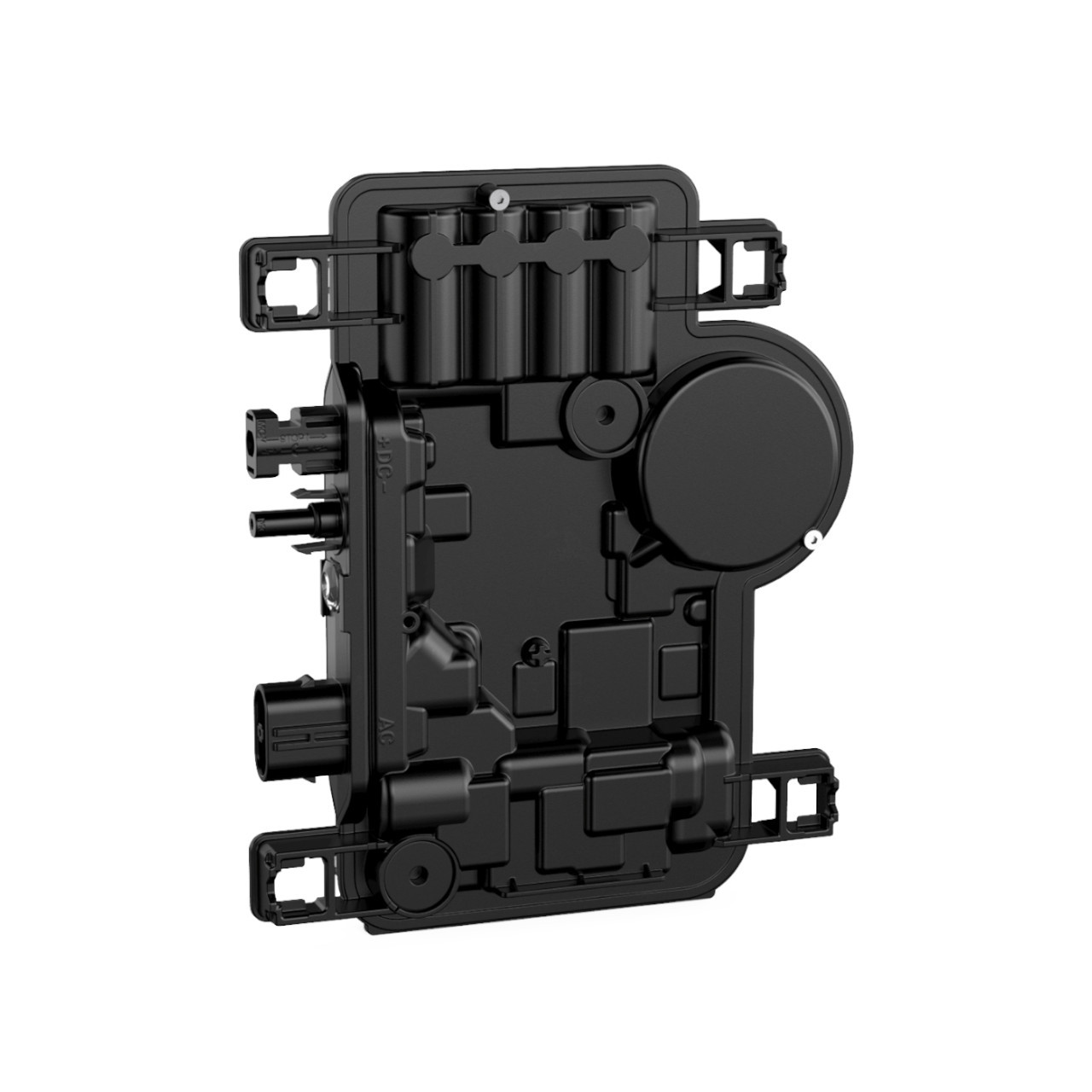

Enphase - IQ8A Microinverter

Product Description

Our newest IQ8 Microinverters are the industry’s first microgrid-forming, softwaredefined microinverters with split-phase power conversion capability to convert DC power to AC power efficiently. The brain of the semiconductor-based microinverter
is our proprietary application-specific integrated circuit (ASIC), which enables the microinverter to operate in grid-tied or off-grid modes. This chip is built using advanced 55-nm technology with high-speed digital logic and has superfast response times to changing loads and grid events, alleviating constraints on battery sizing for home energy systems.

Easy to install
• Lightweight and compact with plug-and-play connectors
• Power line communication (PLC) between components
• Faster installation with simple twowire cabling

High productivity and reliability
• Produce power even when the grid is down*
• More than one million cumulative hours of testing
• Class II double-insulated enclosure
• Optimized for the latest highpowered PV modules

Microgrid-forming
• Complies with the latest advanced grid support**
• Remote automatic updates for the latest grid requirements
• Configurable to support a wide range of grid profiles
• CA Rule 21 (UL 1741-SA) and IEEE 1547:2018 (UL 1741-SB 3rd Ed.)

* Meets UL 1741 only when installed with IQ System Controller 2.
** IQ8 and IQ8+ support split-phase, 240 V installations only
