Product Description

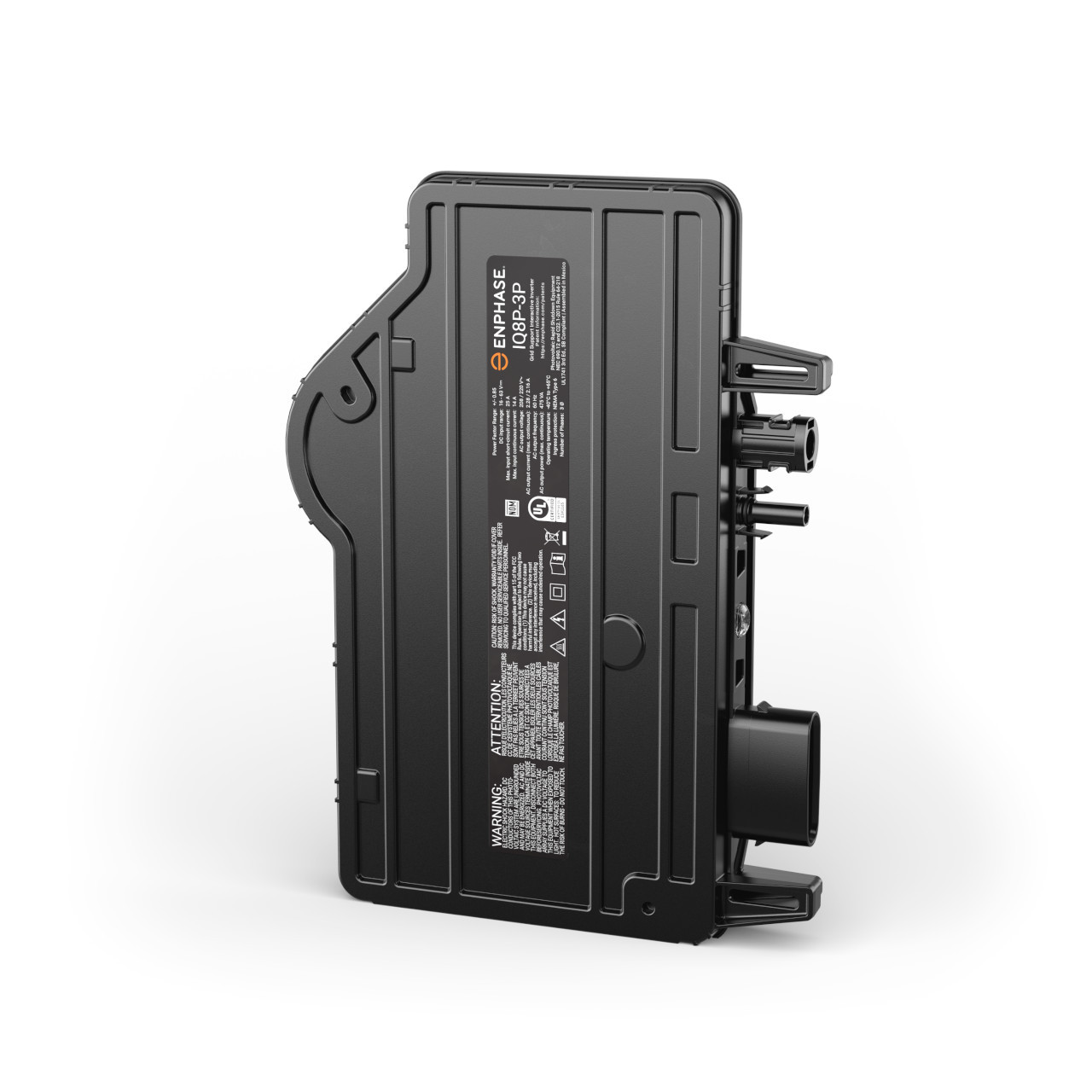

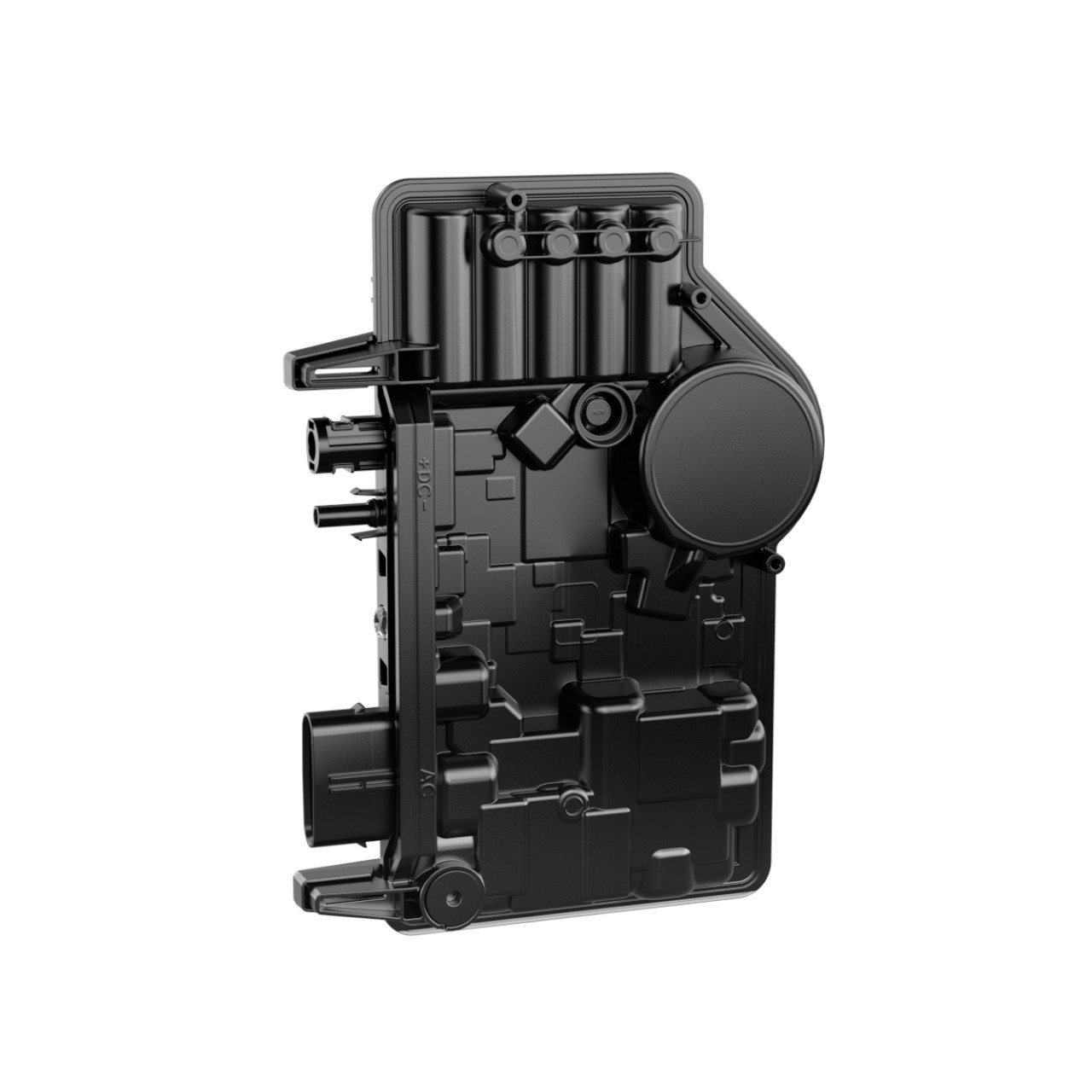

The high-powered, smart grid-ready Enphase IQ8P-3P and IQ8H-3P Microinverters are specifically designed for 208Y VAC* three-phase interconnection for small commercial solutions.
Each microinverter integrates with the IQ Gateway Commercial 2 and the Enphase App monitoring and analysis software.
With simplified design, improved energy harvesting, and advanced monitoring, microinverters offer true peace of mind during operation and maintenance.
Easy to install
• Lightweight and compact with plug-and-play connectors
• Power line communication (PLC) between components
• Faster installation
High productivity and reliability
• More than one million cumulative hours of testing
• Class II double-insulated enclosure
• Optimized for the latest highpowered PV modules
Smart grid-ready
• Complies with the latest advanced grid support
• Remote automatic updates for the latest grid requirements
• Configurable to support a wide range of grid profiles
• Meets CA Rule 21 (UL 1741-SA) and IEEE 1547 (UL 1741-SB) requirements
Warranty Information
| Warranty | 25 Years |
Product Videos
Product Reviews
Documentation
| Datasheet |
Datasheet_Enphase_IQ8P-3P-H-DSU-00236-2.0-EN-US-2023-11-16
|
| Quick Guide |
Quick_Install_Guide_Enphase_IQ8-Commercial-S-QIG-EN-US-2023-02-10
|
Specs
| Power Output | 366W |
| AC Voltage | 208V |
| DC Voltage | 16V – 63V |
| Peak Efficiency | 97.8% |
| Maximum DC Input Voltage | 63V |
| Maximum Short Circuit DC Input Current | 25A |
| MPP operating voltage window | 16V – 63V |
| Output Current | 2.28A |
| Maximum Operation DC Input Current | 14A |
| Certification | CSA |
| Connection | Stäubli MC4 |
| Number of MPPT's | 1 |
| Number of Inputs per MPPT | 1 |
Shipping Dimensions
| Weight: | 3.50 LBS |
| Width: | 21.50 (cm) |
| Height: | 3.50 (cm) |
| Depth: | 27.00 (cm) |
