  • Fronius - Rapid-Shutdown-Box-for-Primo-Quattro
  • Fronius - Rapid-Shutdown-Box-for-Primo-Quattro

    Fronius

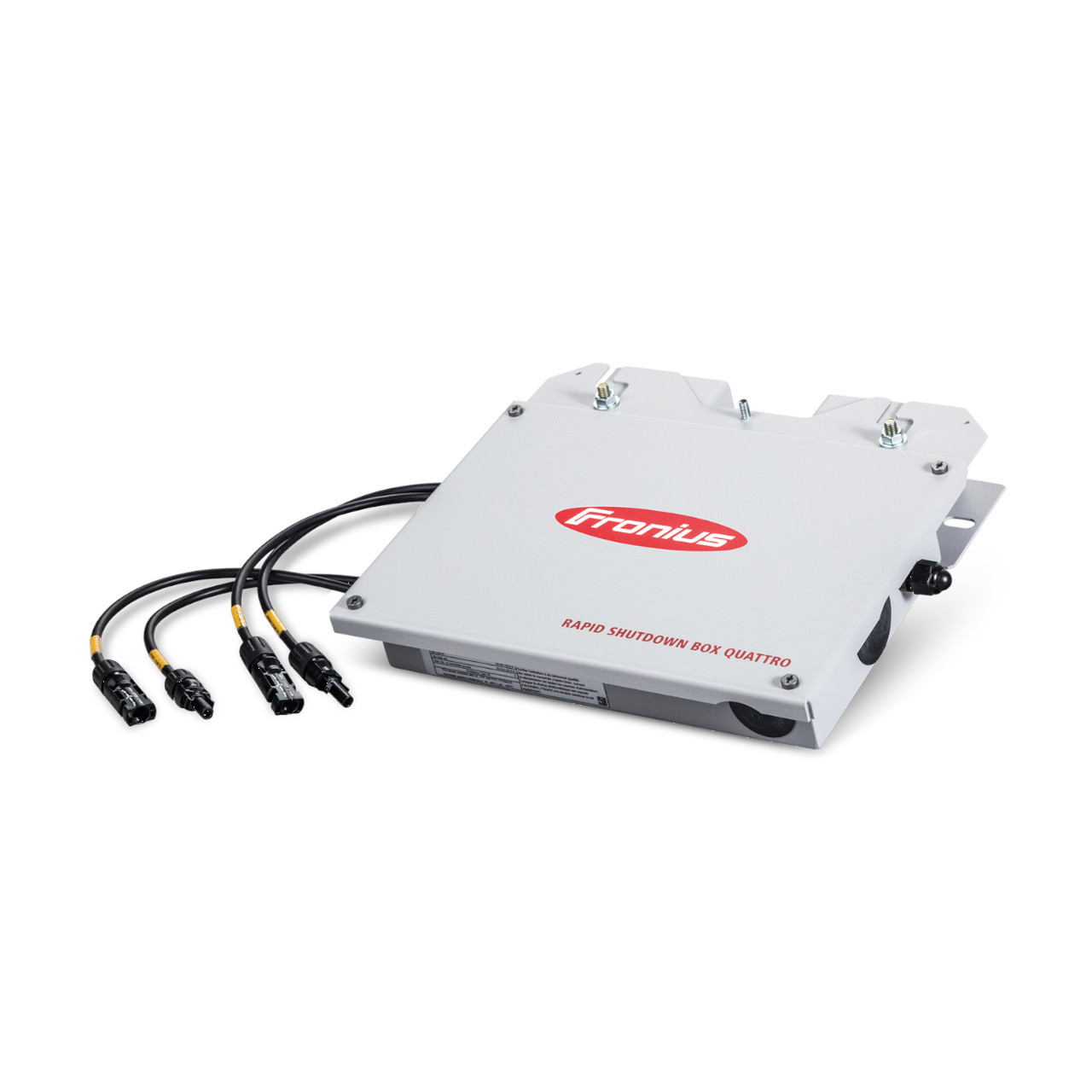

    Fronius - Rapid Shutdown Box - Quattro

    MSRP:
    Now: $640.32
    (You save )

    SKU:
    5500152
    MPN:
    4,240,154
    UPC:
    9007947300522
    Availability:
    In Stock
    Category:
    Inverters/Optimizer/Rapid Shutdown
    Details:
    600Vdc

    Adding to cart… category.add_cart_announcement
    Save to list
    • Create New List

    Share This Article

    • Overview
    • Documentation
    • Specs
    • Dimensions

    Product Description



    For CEC 64-218 Rapid Shutdown compliance on solar rooftop installations in Canada.
    The easy installation of a Fronius Rapid Shutdown Box provides the ultimate solution for Fronius's Primo and some Symo (600Vdc limit) inverters.

    The Fronius RSD box can accommodate up to two strings in parallel per input (up to 4 strings total).
    Please use Staubli MC4 Y-Connectors to connect.

    The Fronius Quattro Rapid shutdown box has a very low DC startup voltage. This allows the RSD box to be used
    even in Off-Grid system together with charge controllers to achieve RSD code compliance or even in conjunction with
    other conventional string inverter brands.

    The RSD box shutdown can be triggered by the integrated signal relay in Fronius Primo and Symo inverter product lines
    or alternatively with a manual switch that interrupts the two-wire communication line.

    For the Province of Alberta and some other jurisdictions, an additional RSD initiator switch can be located on the roof,
    if the roof is accessible and will require a secondary means of rapid shutdown initiazation in more than one location.
    Speak to one for our solar experts how your system can be made code compliant and cost optimized.


    Warranty Information

    Product Videos

    Product Reviews

    Documentation

    Datasheet Datasheet_Fronius_Rapid-Shutdown-Box-Duo-Quattro-EN-US
    Installation Manual Manual_Fronius_Rapid-Shutdown-Box-Quattro
    Certification Certificate_Fronius_Certificate-of-Compliance-Rapid-Shutdown-Box-Quattro

    Specs

    Maximum DC Input Voltage 600V
    Maximum Operation DC Input Current 2x25A
    Number of MPPT's 2

    Shipping Dimensions

    Weight: 8.00 LBS
    Width: 30.00 (cm)
    Height: 14.00 (cm)
    Depth: 45.00 (cm)
    ×
