Product Description

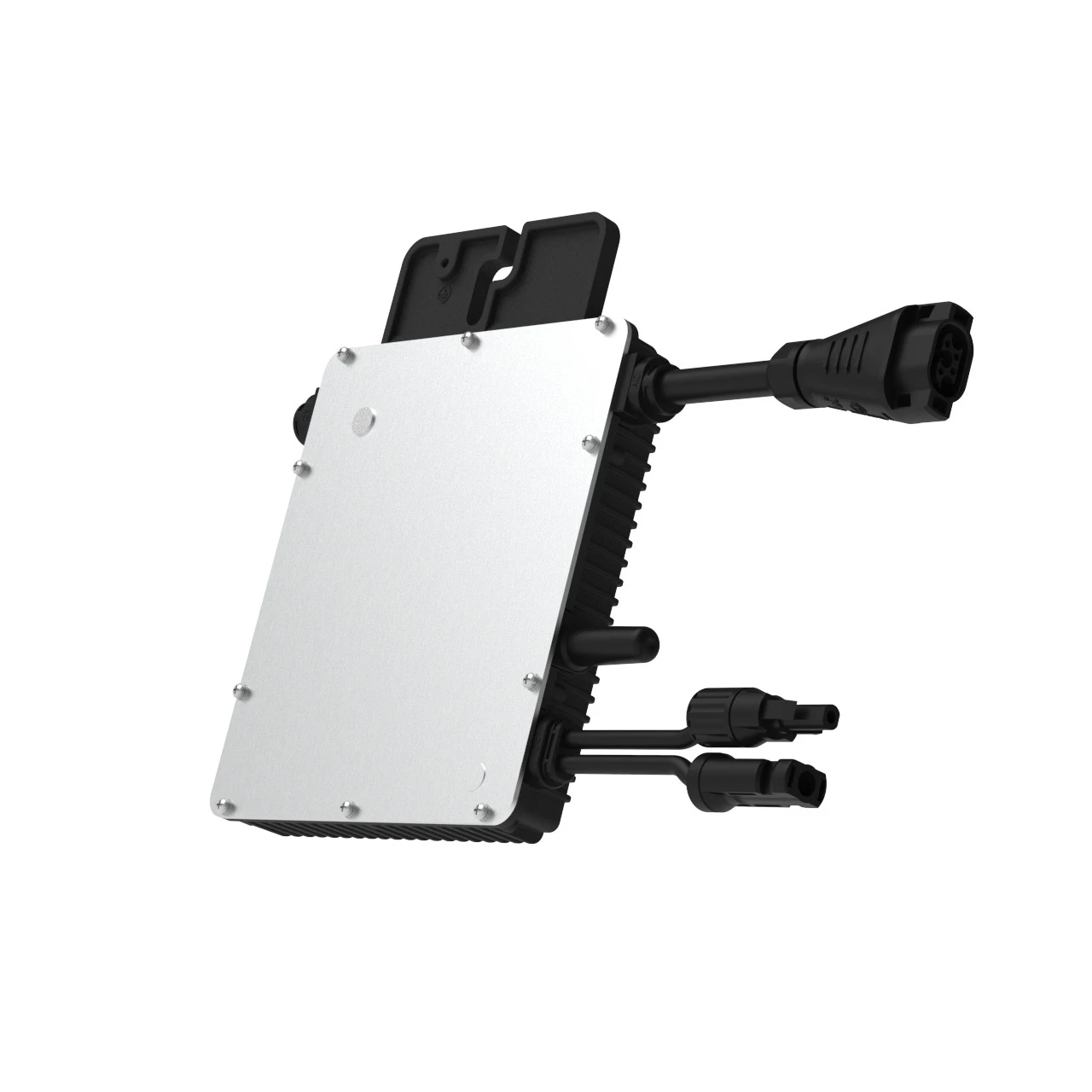

Hoymiles new microinverter HMS-500 series are suitable for high-powered solar panels, which rank among the highest for 1-in-1 microinverters.
Each microinverter can be connected to one panel and used in various applications, making it one of the most flexible solar solutions. With a maximum DC voltage of 65 volts, Hoymiles microinverter is a PV Rapid Shutdown Equipment and conforms with NEC-2017 and NEC-2020 Article 690.12 and CEC-2021 Sec 64-218.
The new Sub-1G wireless solution enables more stable communication with Hoymiles gateway DTU.
Features
- High-powered microinverter for 1-in-1 series with superior performance
- Safer for rooftop solar stations with PV rapid shutdown compliance
- With Reactive Power Control, compliant with UL 1741, IEEE 1547, UL 1741 SB, etc.
- 1-in-1 design enables most flexible applications
Warranty Information
| Warranty | 25 Years |
Product Videos
Product Reviews
Documentation
Specs
| Power Output | 350W |
| AC Voltage | 240V |
| DC Voltage | 60V |
| Peak Efficiency | 96.7% |
| Maximum DC Input Voltage | 60V |
| Maximum Short Circuit DC Input Current | 16A x 1 |
| MPP operating voltage window | 16V - 60V |
| Connectivity | Sub-1G |
| Output Current | 1.33A |
| Maximum Operation DC Input Current | 11.5A x 1 |
| Certification | CSA |
| Connection | Stäubli MC4 |
| Number of MPPT's | 1 |
| Number of Inputs per MPPT | 1 |
Shipping Dimensions
| Weight: | 3.85 LBS |
| Width: | 19.00 (cm) |
| Height: | 17.00 (cm) |
| Depth: | 3.00 (cm) |
