Product Description

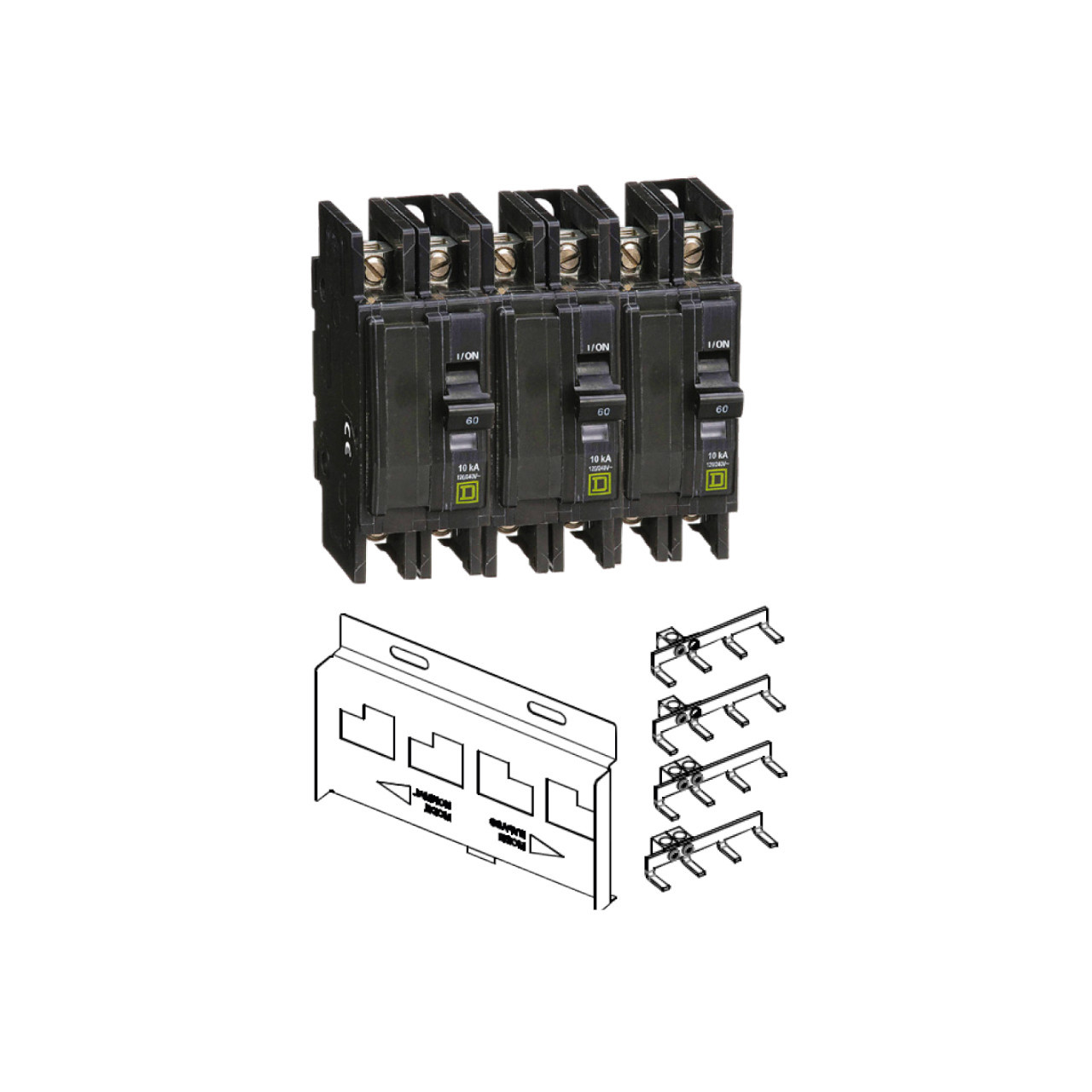

The 60 A, 120/240 VAC Breaker Kit is used for AC distribution for a second or third XW inverter connection to the Power Distribution Panel. If the Power Distribution Panel was ordered with AC breakers, a single breaker kit can be used for connecting two or three inverters. With two inverters, the three additional breakers are used for AC in (grid), bypass, and AC Out (load). With three inverters the breakers in the PDP are used for AC in (grid) and AC Out (load), and bypass functionality would be installed externally (not included). Includes:
- Three 60A, 120/240 Vac, two-pole, Square D, type QOU, DIN-rail mountable AC breakers
- Four Jumpers with four tabs each
- Bypass interlock plate for dual inverter systems
Warranty Information
| Warranty | 2 Years |
Product Videos
Product Reviews
Documentation
| Datasheet |  Datasheet_Schneider_DS20200512_XW-PDP |
| Installation Manual | Manual_Schneider_Conext-XW-PDP-120-240V-60A-Breaker-Kit |
| Warranty PDF | Warranty_Schneider_2-Year-Contractual-Warranty |
Specs
Shipping Dimensions
| Weight: | 4.00 LBS |
| Width: | 14.00 (cm) |
| Height: | 14.00 (cm) |
| Depth: | 29.00 (cm) |
