Product Description

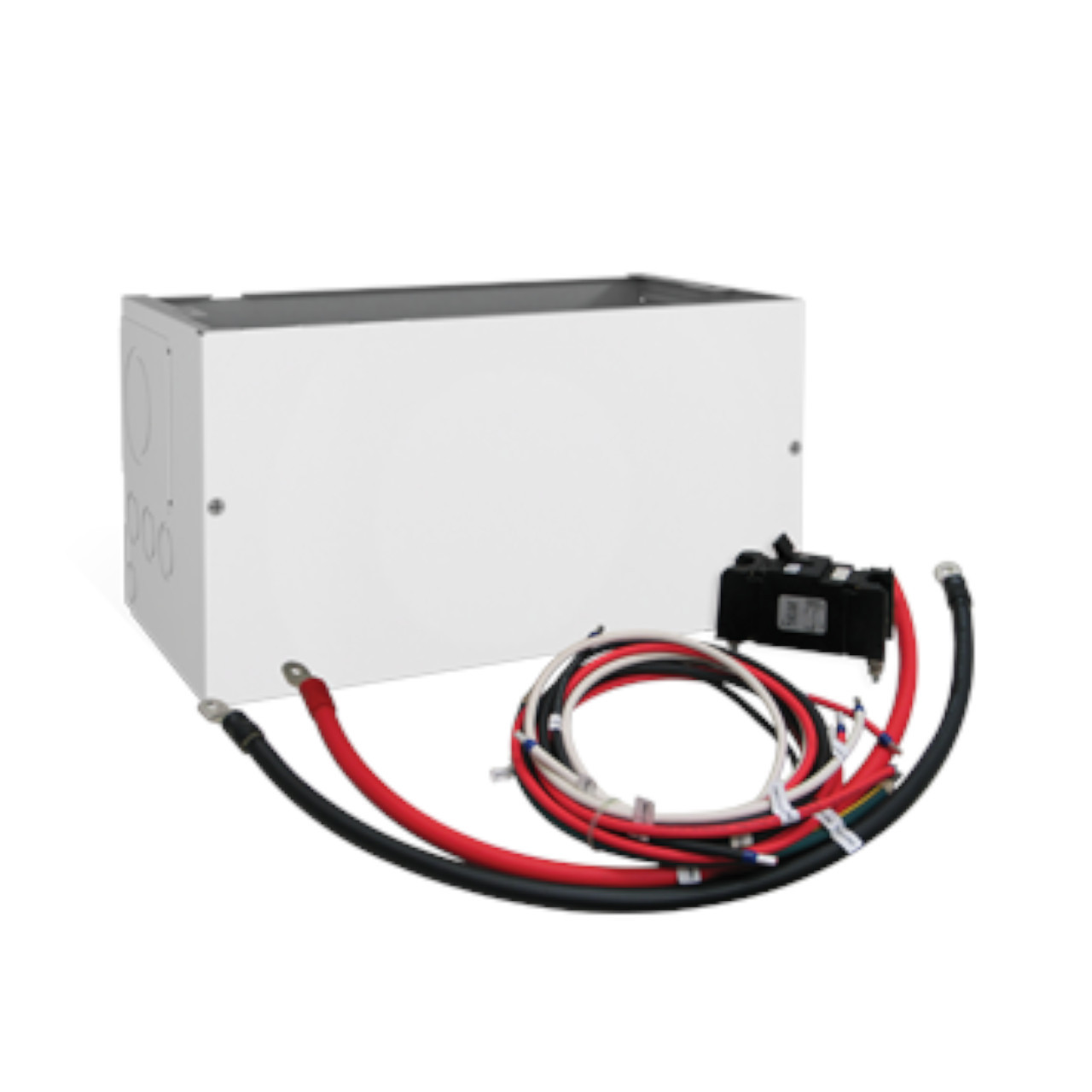

The XW Connection Kit is used for connecting a second or third XW inverter to a Power Distribution Panel (PDP). One XW Connection Kit is used for each of the additional XW Inverters.
The XW Connection Kit is designed for easy installation of multiple inverter systems and includes:
- XW Conduit Box
- Includes a main 250A DC breaker for the battery
- One pair #4/0 AWG battery cables, 64” length to reach from the third inverter to the PDP
- Five #6 AWG cables for AC In (grid), AC Out (load), and neutral
- AC Sync and Xanbus cables for network communication
- DC positive bus bar for up to 3 DC disconnect breakers for installation in the PDP
Warranty Information
| Warranty | 2 Years |
Product Videos
Product Reviews
Documentation
| Datasheet |  Datasheet_Schneider_DS20200812-XW-Pro-UL |
| Installation Manual | Manual_Schneider_Conext-XW-Connection-Kit-For-INV2-3-Installation-Guide |
| Warranty PDF | Warranty_Schneider_2-Year-Contractual-Warranty |
Specs
Shipping Dimensions
| Weight: | 23.50 LBS |
| Width: | 34.00 (cm) |
| Height: | 45.00 (cm) |
| Depth: | 31.00 (cm) |
