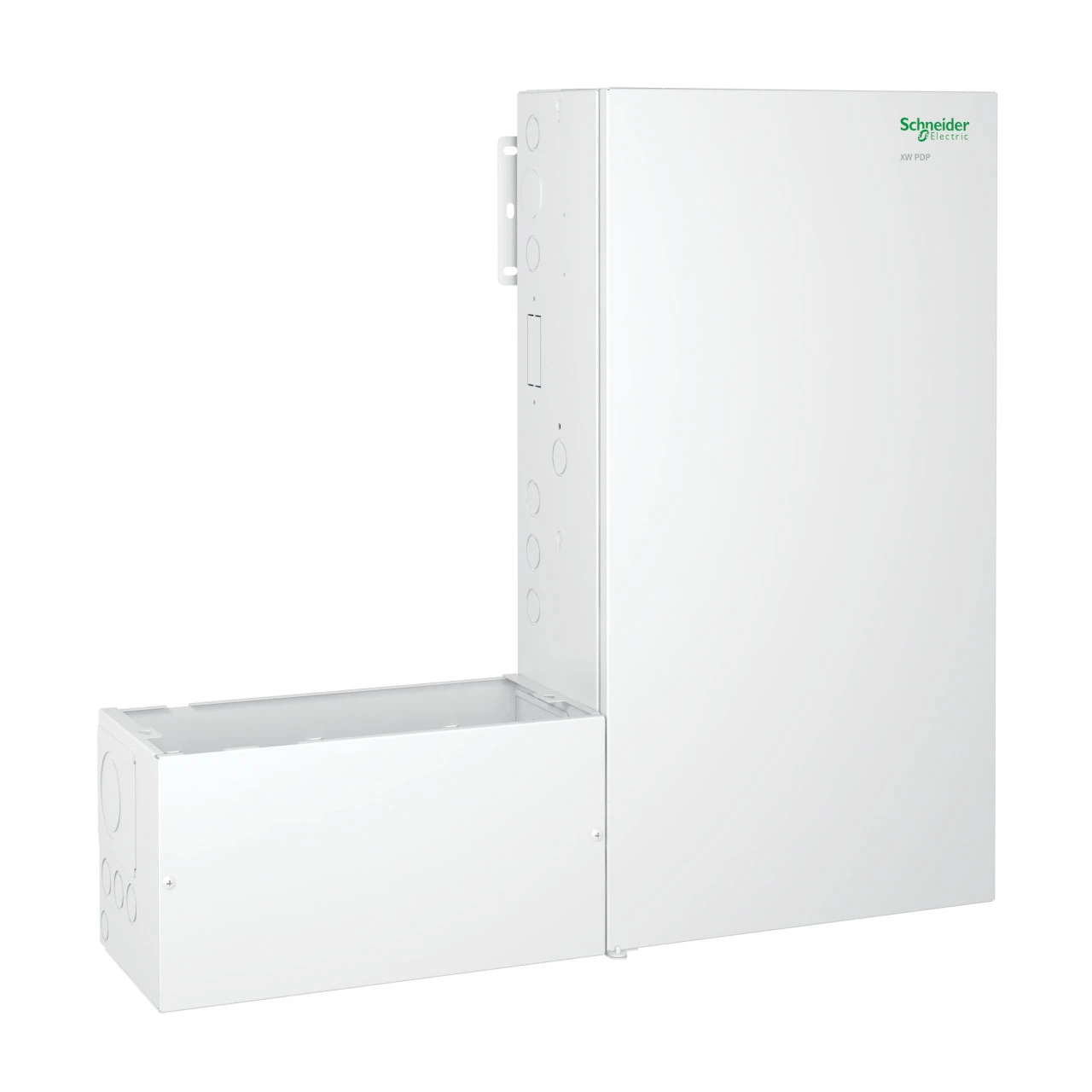

Schneider - Conext XW+ Power Distribution Panel

Product Description

Save installation time and money with the factory-wired and labeled Power Distribution Panels for the XW system

The Conext™ XW Power Distribution Panels (XW PDP and Mini PDP) are factory-wired and labeled to support the integration of multiple Conext XW series inverter/chargers and Conext MPPT Solar Charge Controllers with a single battery bank. The XW PDP and Mini PDP ships with breakers, bus bars and cables to install a single XW series inverter/charger. With space to add wiring and breakers, a single XW PDP and Mini PDP supports one XW series inverter/charger, a diesel generator and either an MPPT 80 600 or MPPT 60 150 Solar Charge Controller. The XW PDP and Mini PDP support single-phase, split-phase or three-phase installations. A field-reversible door and multiple conduit knockout entry points allow for the XW PDP and Mini PDP enclosure to be mounted and configured on either side of the inverter/charger.

Conext XW Power Distribution Panels help you save significant time and money during installation when compared to custom solutions. A mounting bracket and Conext XW Conduit Box are also supplied with each XW PDP and Mini PDP.

Why Choose Conext XW Power Distribution Panels

Higher return on investment

• Integrate multiple Conext XW series inverter/chargers and Conext MPPT Solar Charge Controllers with a single battery bank
• Repeatable standard installation that saves time and money

Flexible

• Single-phase, split-phase or three-phase systems
• Multiple field configurable conduit entry points on the back, bottom, top and sides
• DIN Rail mounting for QOU type and Multi-9 AC breakers

Easy to service

• Breaker configuration allows XW series inverter/chargers to be AC bypassed for servicing
• Field-reversible door panel allows for visual inspection

Easy to install

• Wall mount with included bracket
• Add additional Conext XW series inverter/chargers with Conext XW connection kit
