Product Description

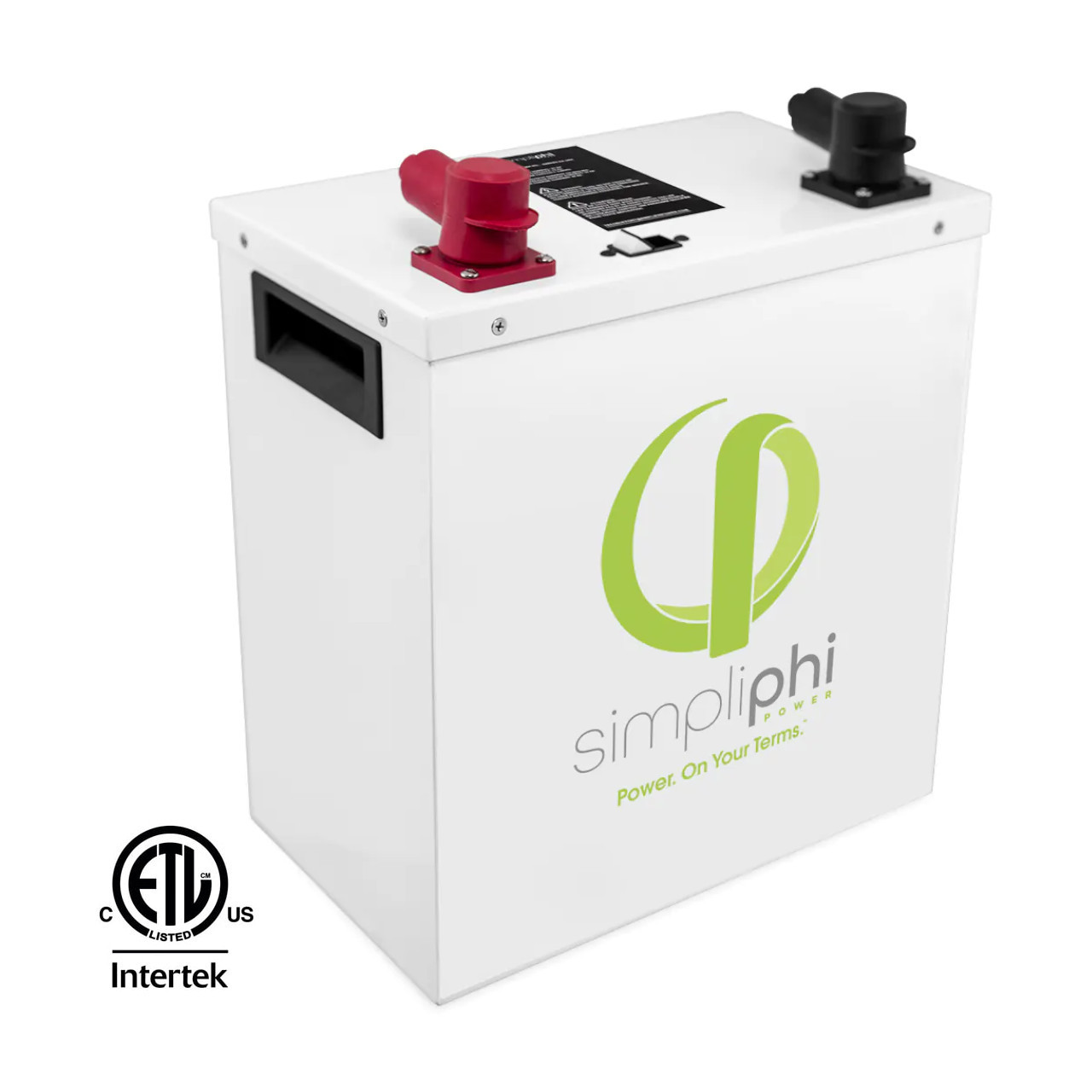

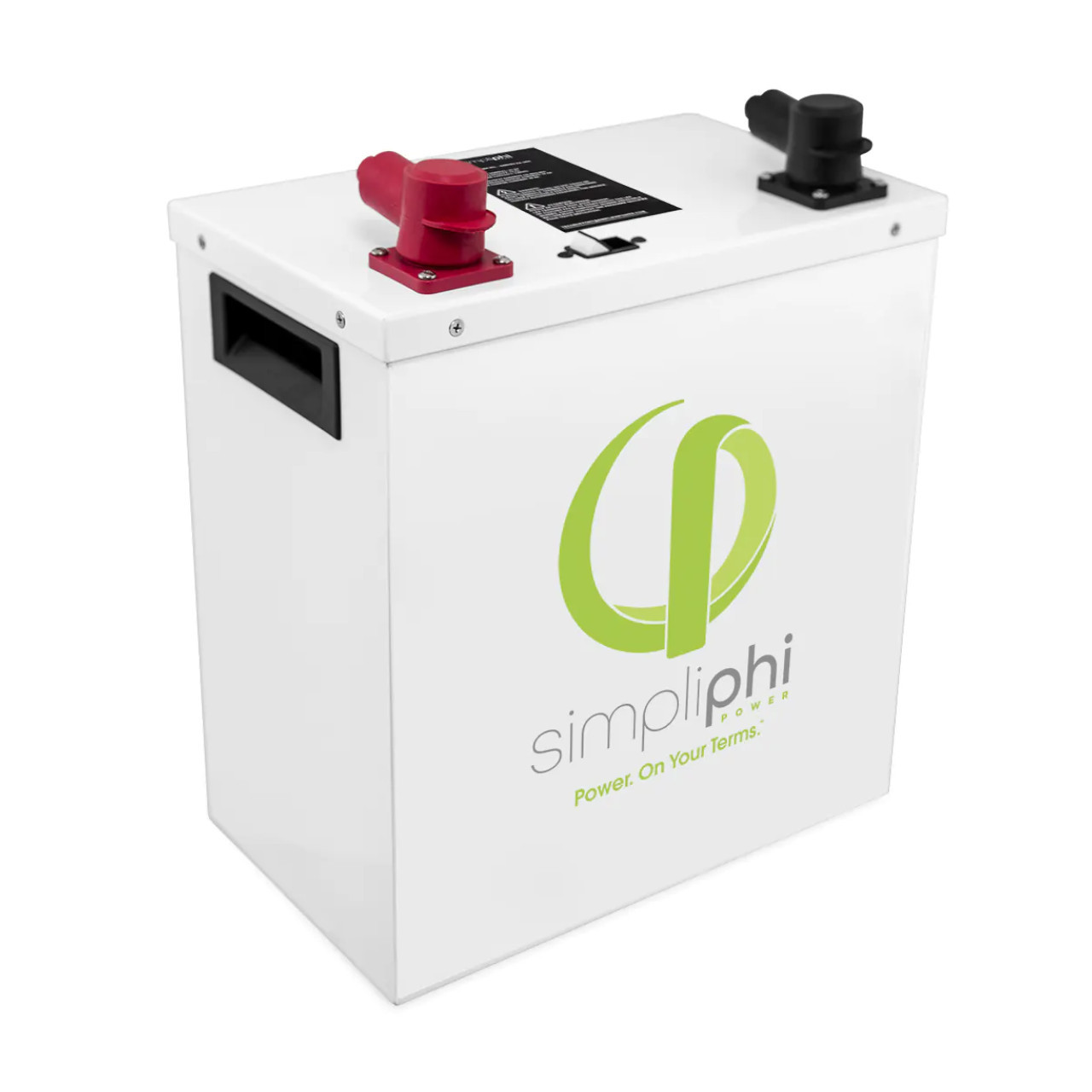

The PHI 3.8™ kWh 60 Amp deep-cycle Lithium Ferro Phosphate (LFP) battery is optimized with proprietary cell architecture, power electronics, BMS and assembly methods. It is modular, light- weight and scalable for installations that range from kWh to MWh. Provides power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile.
| CHEMISTRY | Lithium Ferro Phosphate (LFP) The safest Lithium Ion chemistry available No cobalt, risk of thermal runaway or fire |
| OCPD | Built-in accessible 80 Amp DC breaker On/Off switch |
| BMS | Built-in Battery Management System |
| COMPATIBILITY | Compatible with all industry standard inverters and charge controllers Battery bank-to-inverter output sizing must adhere to a 2:1 ratio: battery quantity = (inverter kWAC rating ÷ inverter efficiency) ÷ battery MAX Continuous Discharge Rate in kWDC |
| MAINTENANCE | Maintenance-free No ventilation, cooling or thermal regulation required |
Warranty Information
| Warranty | 10 Years (prorated) |
Product Videos
Product Reviews
Documentation
| Datasheet |  Datasheet_SimpliPhi_PHI-3-8-kWh-M-Specification-Sheet |
| Install Manual | Manual_SimpliPhi_PHI-3-8-2-9-1-4-730-Installation-Manual |
| Warranty | Warranty_SimpliPhi_AmpliPHI-Battery-PHI-Battery-Warranty |
| App Note | AppNote_SimpliPhi_PHI-Series-Batteries-Threaded-Terminal-Wiring-Guide |
| Product Brochure | Brochure_SimpliPhi_PHI-Batteries-Product-Brochure |
| Integration Guide | AppNote_SimpliPhi_Power-PHI-Battery-Schneinder-Integration-Guide |
| Integration Guide | AppNote_SimpliPhi_Power-PHI-Battery-Victron-Integration-Guide |
Specs
| Power Output | 3.8kWh |
| Battery Voltage | 24V |
| Amp Hour | 151Ah |
Shipping Dimensions
| Weight: | 86.00 LBS |
| Width: | 40.00 (cm) |
| Height: | 45.00 (cm) |
| Depth: | 25.00 (cm) |
