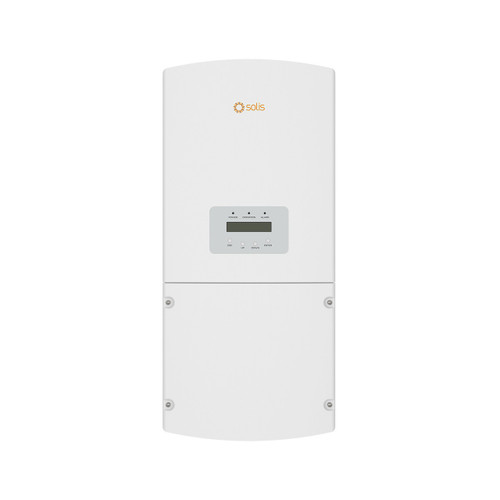

Product Description
• Max. efficiency 97.7% (CEC efficiency 97.1%)
• String current up to 14A
• CA Rule 21 compliant and UL 1741 SB Certified
• Sunspec protocol with option cellular and WiFi
• Integrated module level rapid shutdown transmitter
• Support module level monitoring
• Optional Built-in Revenue Grade Meter, ANSI C12.20-2010 compliance
• Fast and dynamic MPPTs and industry-leading DC voltage range
• AFCI protection, proactively reduces fire risk
• 10 years standard warranty with extension options
Warranty Information
| Warranty | 10 Years |
Product Videos
Product Reviews
Documentation
| Datasheet |  Datasheet_Solis-1P(3.6-5)K-4G-US-Datasheet |
| Manual | Manual_Solis_Manual-(2.5-6)K-4G-PLUS-LW-USA-V1.0(20230131) |
Specs
| Power Output | 5.0kW |
| DC Voltage | 330V |
| Maximum DC Input Voltage | 600V |
| Number Of MPPT's | 2 |
| Breaker | 30A |
| Cooling Method | Natural Convection |
| Inverter Type | String |
| Number of DC Inputs | 2 |
| Connectivity | RS485, Optional: Cellular, Wi-Fi |
| Maximum Operation DC Input Current | 14A |
| Maximum Short Circuit DC Input Current | 22/22A |
| AC Voltage | 120/240V |
Shipping Dimensions
| Weight: | 34.00 LBS |
| Width: | 84.00 (cm) |
| Height: | 46.00 (cm) |
| Depth: | 18.00 (cm) |
