Product Description

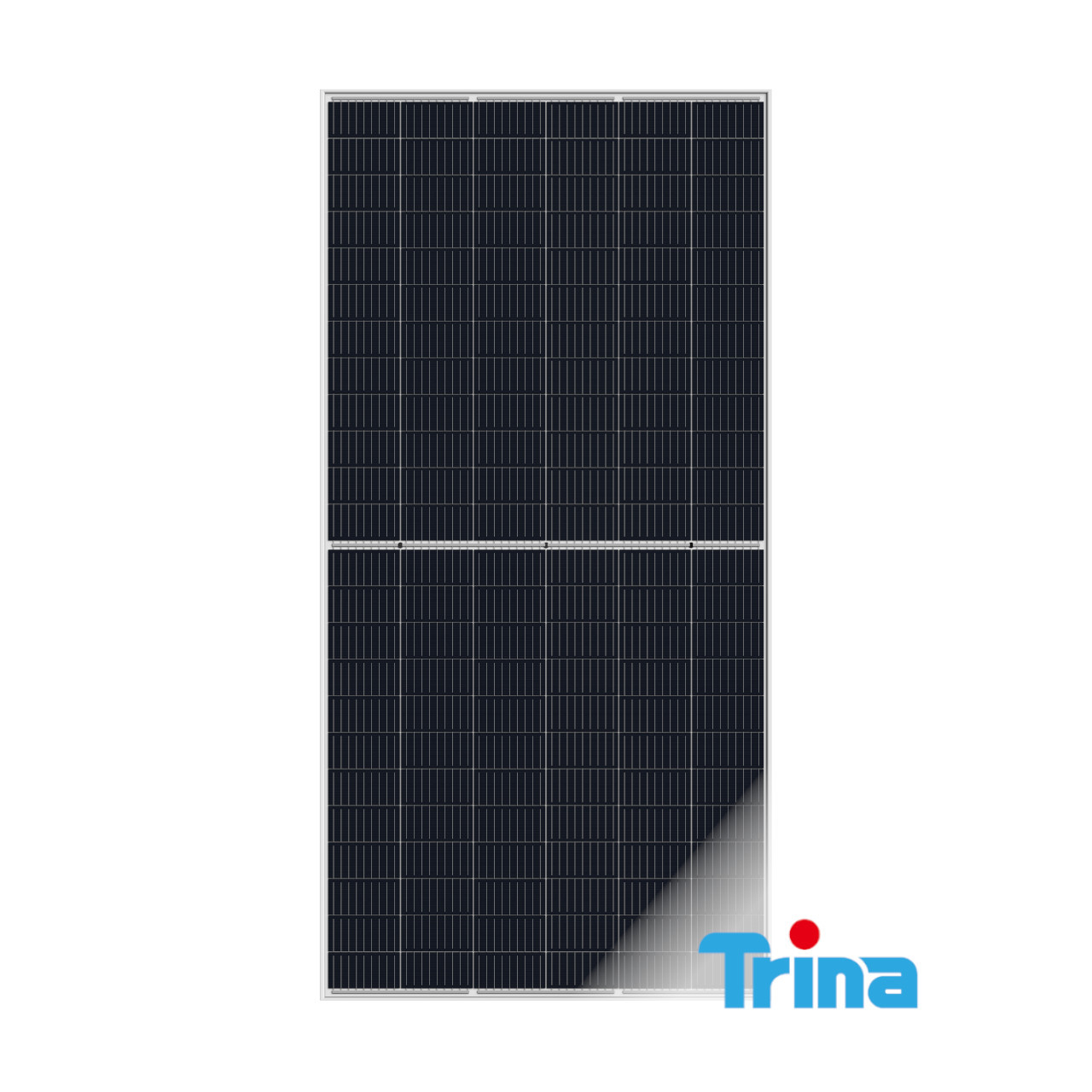

Trina - DuoMax Twin - 395W - Bifacial
The DUOMAX Twin BIFACIAL DUAL GLASS 144 CELL MULTI BUSBAR MODULE
High power output
- Up to 410W front power and 20.2% module efficiency with half-cut and MBB (Multi Busbar) technology enabling higher BOS savings
- Lower resistance of half-cut cells ensures higher power
Certified to perform in highly challenging environments
- High PID resistance through cell process and module material control
- Resistant to salt, acid, sand, and ammonia
- Proven to be reliable in high temperature and humidity areas
- Certified to the best fire class A
- Minimizes micro-crack and snail trails
- Certified to 5400 Pa positive load and 2400 Pa negative load
High energy generation, low LCOE
- Up to 25% additional power gain from back side, depending on the albedo
- Excellent 3rd party validated IAM and low light performance with cell process and module material optimization
- Low temp coefficient (-0.35%) and NMOT increases energy production
- Higher power from same installation footprint as standard modules
Easy to install, wide application
- Frame design enables compatibility with standard installation methods
- Safe and easy to transport, handle, and install like normal framed modules
Warranty Information
Warranty | 30 Years |
Product Videos
Custom Field
Details 395W, Bifacial, TS4 Connector
doc_Datasheet Datasheet_Trina_Solar_DuomaxTwin-DEG15MC.20-NA-2020_(frankensolar)
Details 2 Silver Frame with White Backsheet
Details 3 35 Modules per Pallet
Warranty 30 Years
spec_Power Output 395W
spec_Peak Efficiency 20.2%
spec_Type 144-Half-Cell Module
spec_Facial Bi
spec_Connection MC4
spec_Sorting +5/-0w
Product Reviews
Documentation
Datasheet | DuomaxTwin-DEG15MC.20-NA-2020 |
Specs
Power Output | 395W |
Peak Efficiency | 20.2% |
Type | 144-Half-Cell Module |
Facial | Bi |
Connection | MC4 |
Sorting | +5/-0w |
Dimensions
Shipping Dimensions
Weight: | 60.00 LBS |
Width: | 105.00 (cm) |
Height: | 35.00 (cm) |
Depth: | 205.00 (cm) |
