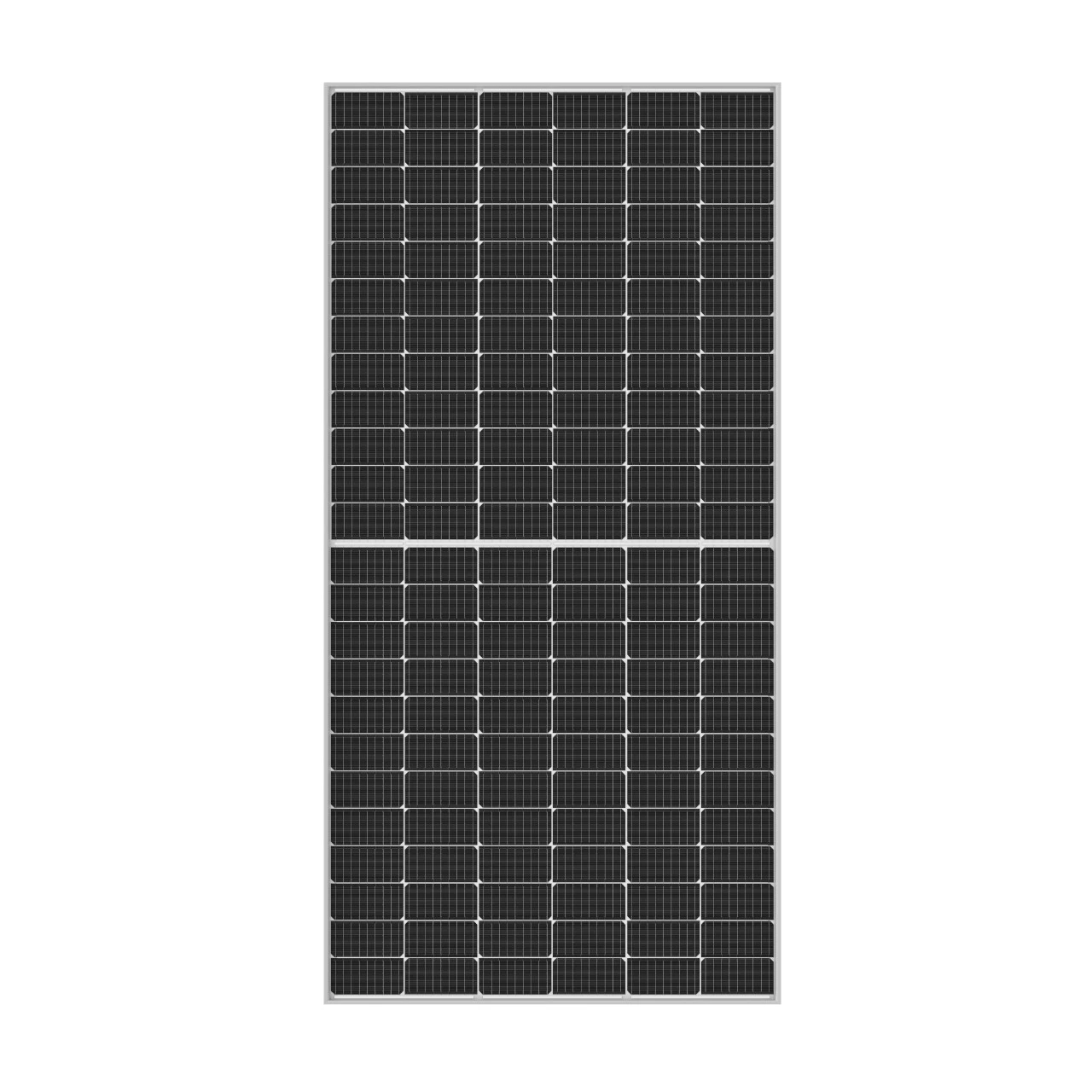

Product Description
- Positive power tolerance (0~ 3%)
- High module conversation efficiency
- Slower power degradation enabled by Low LID Mono PERC technology: first year <2%, 0.55% year 2-25
- Solid PID resistance ensured by solar cell process optimization and careful module BOM selection
- Adaptable to harsh environment: passed rigorous salt mist and ammonia tests
- Outstanding low light performance, average relative efficiency 97.5% or better at 200W/m2
- Reduced resistive loss with lower operating current
- Higher energy yield with lower operating temperature
- Reduced hot spot risk with optimized electrical design and lower operating current
Warranty Information
Warranty | 25 Years |
Product Videos
Custom Field
doc_Datasheet Datasheet_Longi_LR5-72HPH-535-555M_(frankensolar)
doc_Installation Manual Manual_Longi_LR4-LR5-LR6_(frankensolar)
doc_Warranty PDF Warranty_Longi_PV-Modules-(HE-Single-Glass-series)-V09_(frankensolar)
Warranty 25 Years
spec_Power Output 550W
spec_Peak Efficiency 21.7 %
spec_Type 120-Half-Cell Module
spec_Facial Monofacial
spec_Connection MC4
google_Clean Image https://cdn11.bigcommerce.com/s-fv94jpligr/products/960/images/2811/LONGi_LR4-72HBD-1_frankensolar__54121.1637266841.386.513.jpg
spec_Container 620
spec_Cell Count 72
spec_Frame Colour Silver
spec_Backsheet Colour White
spec_Pallet Qty 31
spec_Thickness 35mm
Product Reviews
Documentation
Datasheet | ![]() |
Installation Manual | ![]() |
Warranty PDF | ![]() |
Specs
Power Output | 550W |
Peak Efficiency | 21.7 % |
Type | 120-Half-Cell Module |
Facial | Monofacial |
Connection | MC4 |
Container | 620 |
Cell Count | 72 |
Frame Colour | Silver |
Backsheet Colour | White |
Pallet Qty | 31 |
Thickness | 35mm |
Dimensions
Shipping Dimensions
Weight: | 60.00 LBS |
Width: | 113.30 (cm) |
Height: | 3.50 (cm) |
Depth: | 225.60 (cm) |
