Product Description
Aluminum module-bearing profile rails - standard components of the fastening system.
- Mounting with square nut, Klick system, RapidPro and RapFix
- Structural analysis tables for cross beams
- Load determination software on the Internet: Click here to download
Mechanical Connections
| Upper | Direct with RapidPro module clamp, or special applications with KlickNut (Square-nut) M8 |
| Lower | SML Foot or Gator Clamp on Hangerbolt, alternatively: Screw Channel M10 Hex Bolt Head |

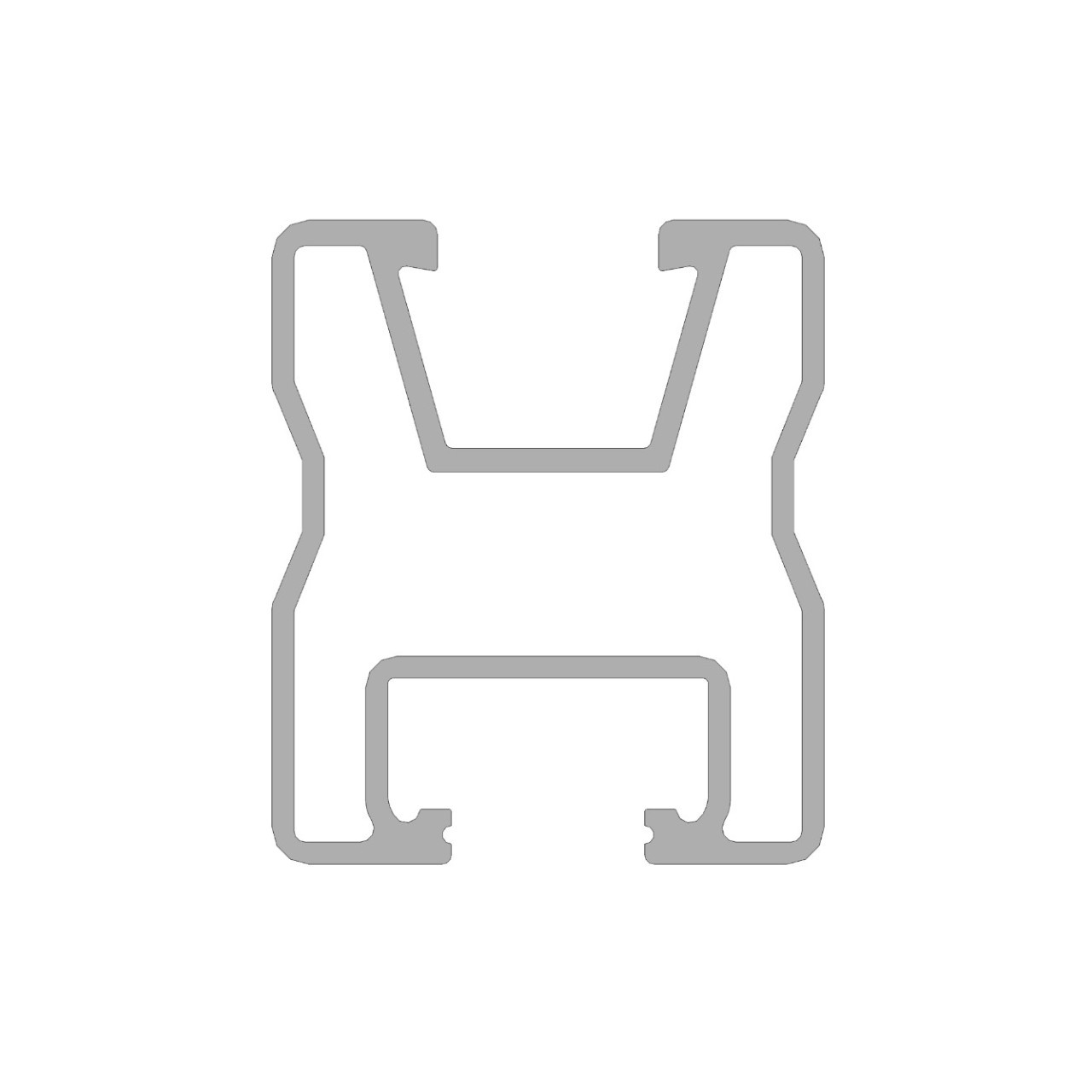

Dimensions
| Height | 40mm |
| Width | 45mm |
| Length | 2.4m |
Warranty Information
| Warranty | 10 Years |
Product Videos
Product Reviews
Documentation
| Warranty PDF |  Warranty_Schletter_Components-20-Year-Limited-Warranty |
| 3D Rendering | Schletter_120020-02400-Rail-Pro35-2.4m-3D_(frankesolar) |
| Manual | Manual_Schletter_Flushmount-Manual-2023.04.03 |
| 3D PDF Guide |  Guide to Opening 3D PDF Documents |
Specs
Shipping Dimensions
| Weight: | 9.00 LBS |
| Width: | 4.00 (cm) |
| Height: | 4.00 (cm) |
| Depth: | 440.00 (cm) |
