Product Description

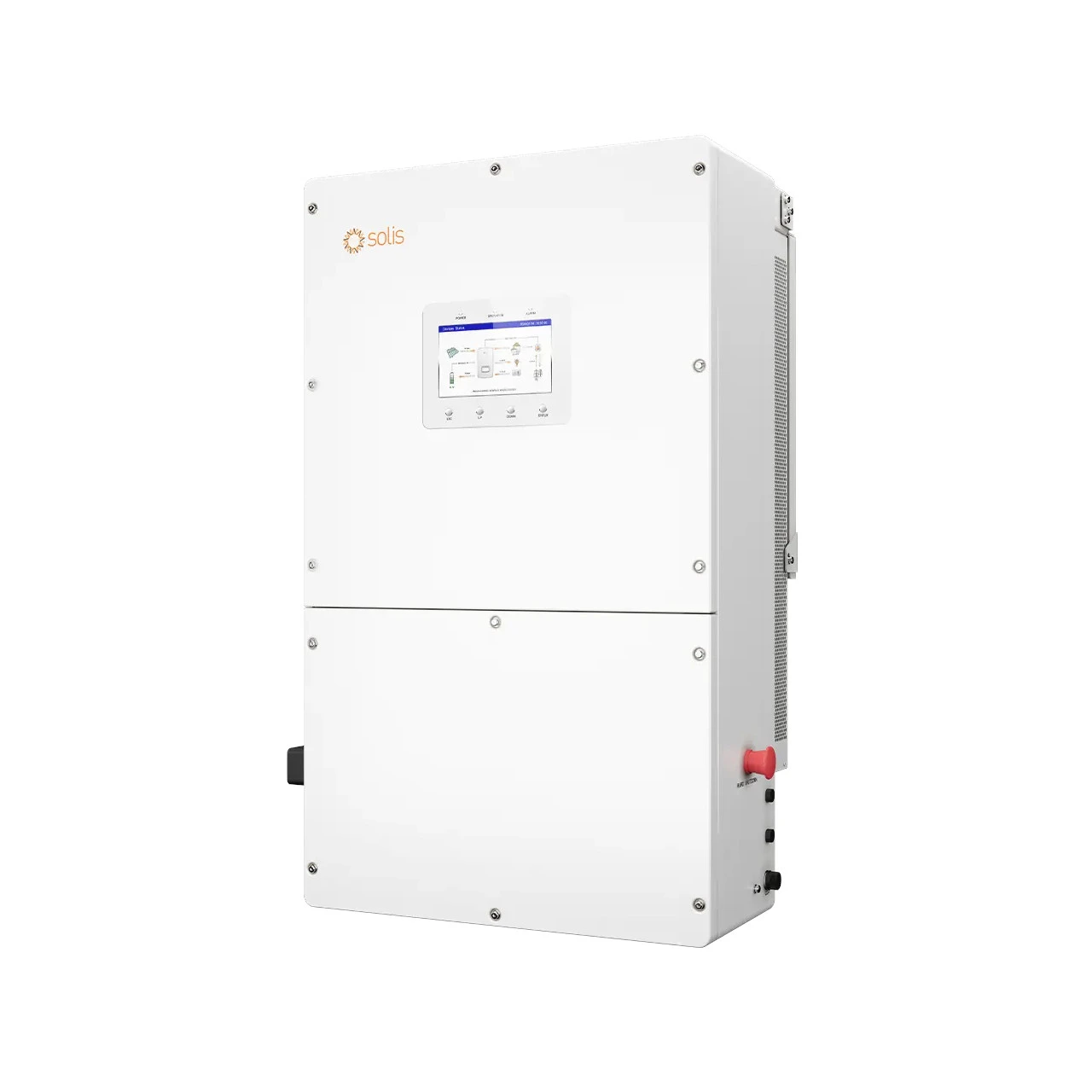

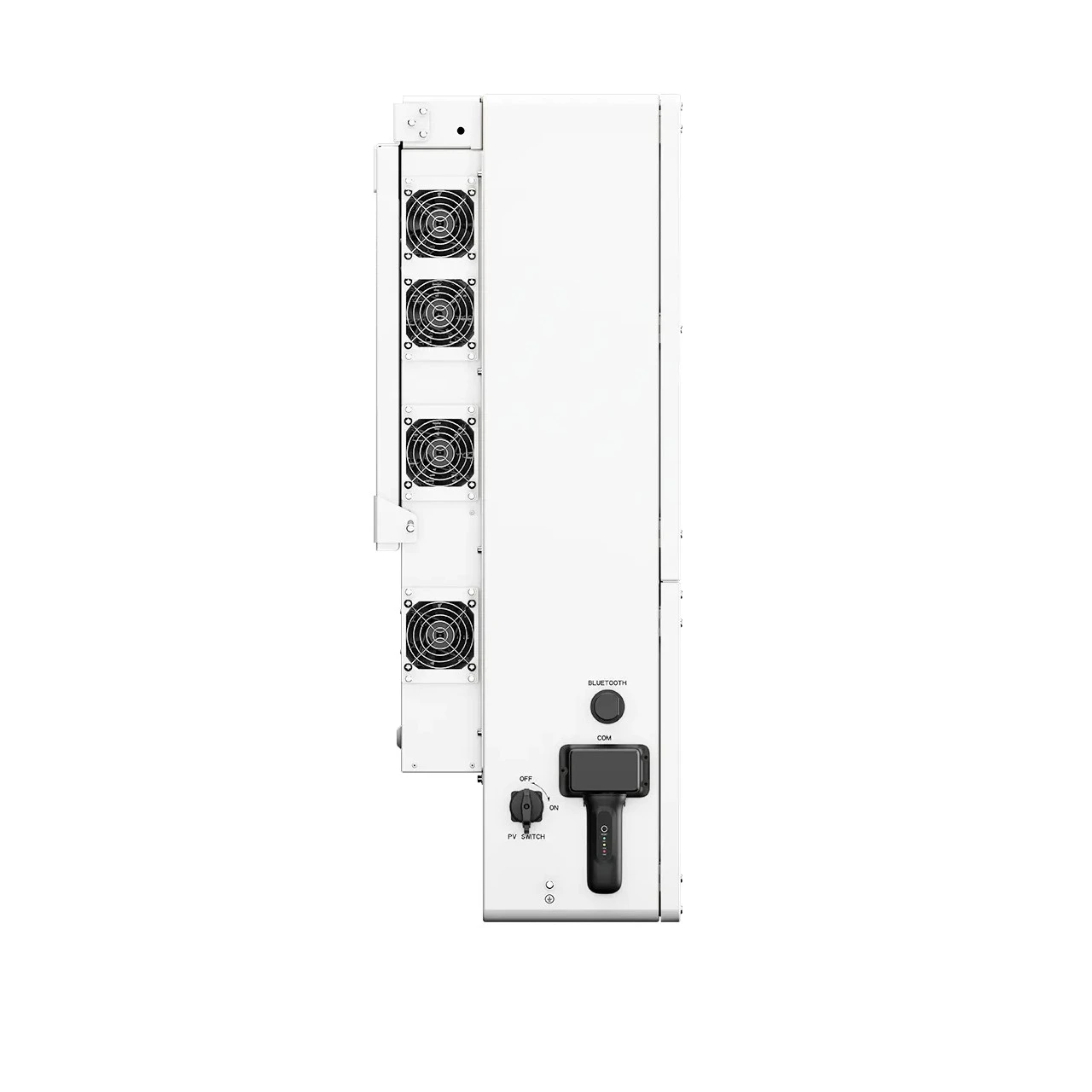

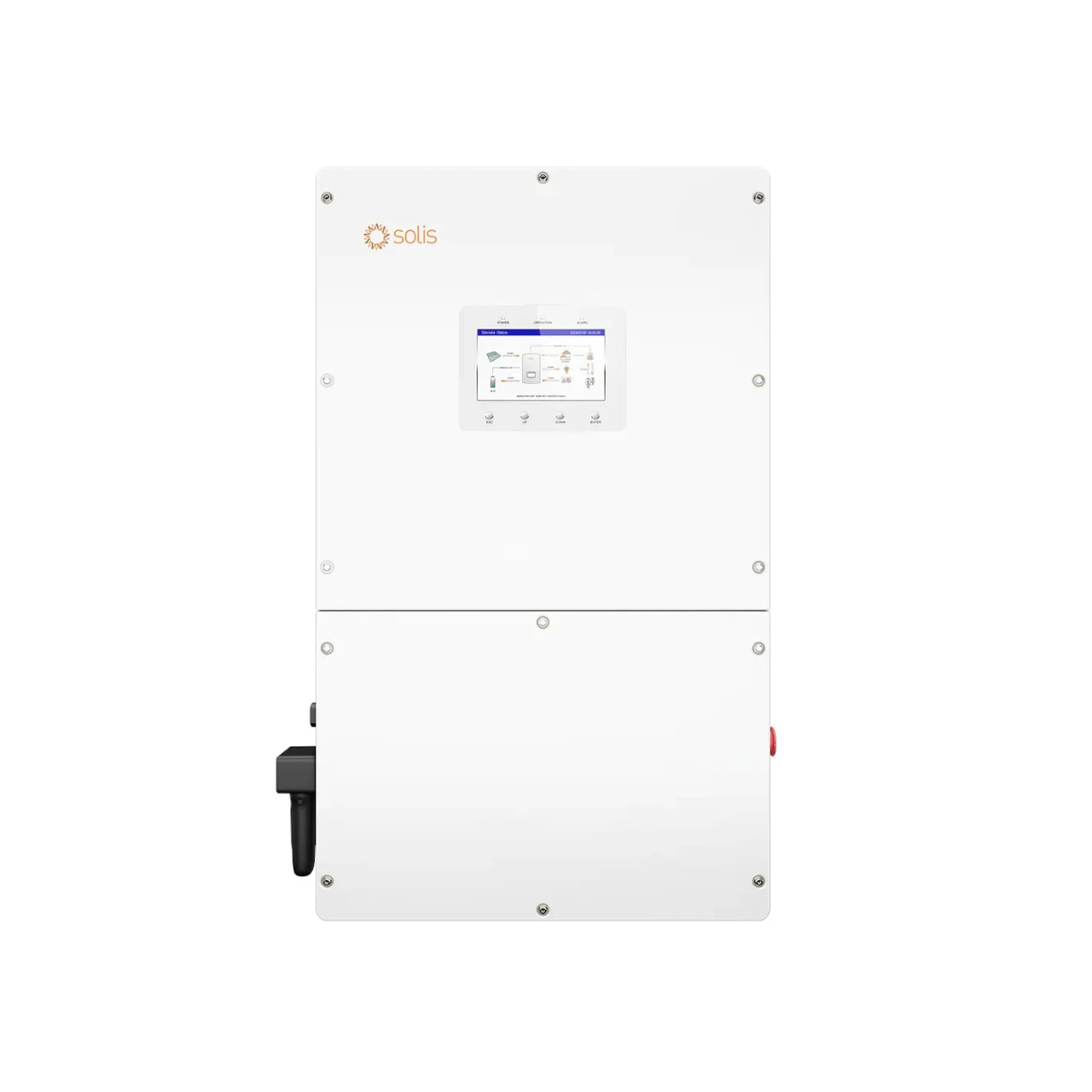

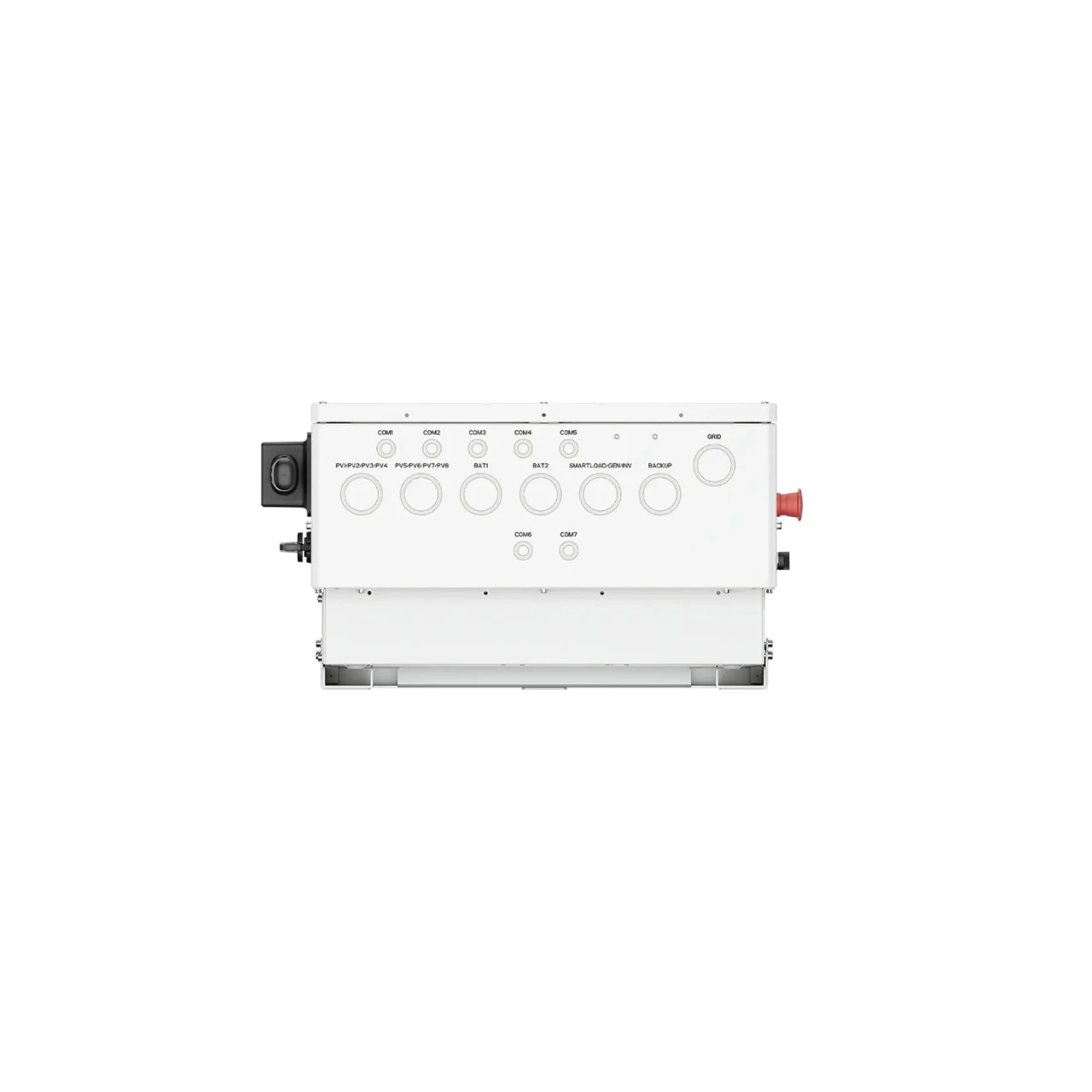

Introducing the Solis Commercial Hybrid Series. High voltage, three-phase energy storage for commercial applications. The inverter series, which boasts a maximum charge/discharge current of 70A+70A across two independently controlled battery ports, enabling optimum flexibility and scalability for commercial projects today and tomorrow. Whether for on or off-grid applications, the Commercial Hybrid series supports more flexible and scalable solar+storage with key features as well as an open ecosystem of today's leading battery suppliers.
Leading Features
- Stability during and after outages with 160% overload capacity
- Extremely flexible configurations, storage use mode features and battery options
- Supports 200% oversizing for maximizing PV utilization (60K: 166%)
- High input current (40A) supports larger modules, improving power density and eliminating clipping
- More seamless system operation and resiliency with fast and automated battery charge/discharging
- Easily add inverter capacity, PV or batteries to scale up as you grow thanks to dual input flexibility
- Compatible with 100-280Ah battery modules, driving down system costs and enhancing flexibility, wide range for generator power as well
Warranty Information
| Warranty | 10 Years |
Product Videos
Product Reviews
Documentation
Specs
| Power Output | 30kW |
| Maximum DC Input Voltage | 1000V |
| Number of MPPT's | 3 |
| Cooling Method | Intelligent fan-cooling |
| Inverter Type | String |
| Number of DC Inputs | 6 |
| Connectivity | CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN |
| Maximum Operation DC Input Current | 40A |
| Maximum Short Circuit DC Input Current | 65A |
| AC Voltage | 208V |
| Rapid Shutdown | Integrated SunSpec-certified Transmitter |
| Certification | UL1741SB |
| Backup Continuous Power | 30kW |
| Backup Peak Power | 48kW |
Shipping Dimensions
| Weight: | 196.00 LBS |
| Width: | 56.00 (cm) |
| Height: | 105.00 (cm) |
| Depth: | 35.00 (cm) |
