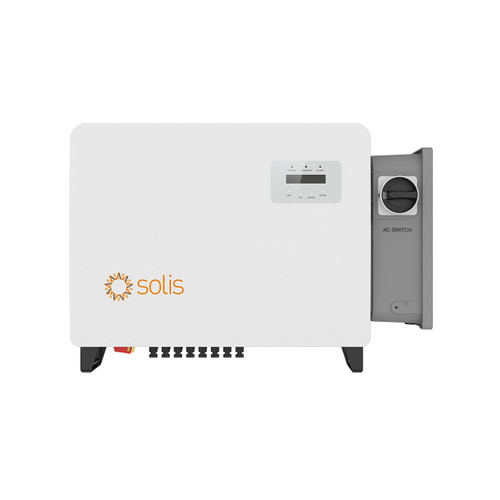

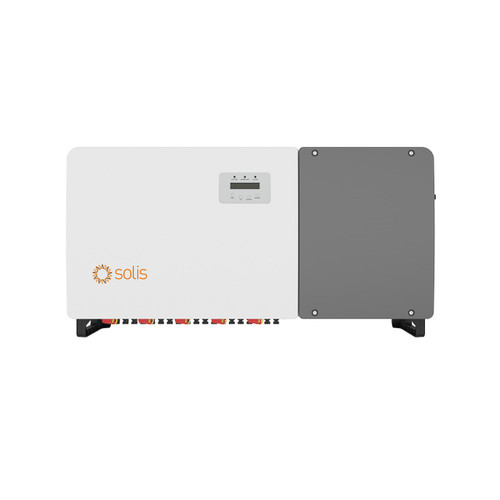

Product Description
Efficient
• Max. efficiency 98.8% (CEC efficiency 98.5%)
• String current up to 20A
• 3/4 MPPT design, supports multiple orientation system design
• Night time PID recovery function, increases overall system yield (optional)
• Wide voltage range and low startup voltage
Smart
• Equipped with external power control interface, supporting zero output power control
• Intelligent string monitoring, smart I-V curve scan
• Supports RS485, Ethernet, WiFi, Cellular
• Scan to register on SolisCloud, supports remote upgrade and control
Safe
• Type 4X, C5 Anti-Corrosion Level
• AFCI protection, proactively reduces fire risk
• Intelligent redundant fan-cooling
• Integrated module level rapid shutdown transmitter
• High quality components from globally recognized suppliersl
• Integrated DC and AC disconnects
Economic
• > 1.5 DC/AC ratio
• Supports high power modules for lower installation costs
• Separable AC wiring box
Warranty Information
| Warranty | 10 Years |
Product Videos
Product Reviews
Documentation
| Datasheet |  Datasheet_Solis_S6-GC(25-60)K-US-Datasheet |
| Manual | Manual_Solis_Manual-S6-GC(25-60)K-US-V1.0(20230801) |
Specs
| Power Output | 25kW |
| DC Voltage | 720V |
| Maximum DC Input Voltage | 1000V |
| Number Of MPPT's | 4 |
| Breaker | 80A |
| Cooling Method | Natural Convection |
| Inverter Type | String |
| Number of DC Inputs | 8 |
| Connectivity | Modbus RTU (Sunspec compliant), RS485, Optional: Cellular, Wi-Fi |
| Maximum Operation DC Input Current | 40A |
| Maximum Short Circuit DC Input Current | 63A |
| AC Voltage | 480V |
Shipping Dimensions
| Weight: | 82.00 LBS |
| Width: | 65.00 (cm) |
| Height: | 63.00 (cm) |
| Depth: | 26.00 (cm) |
