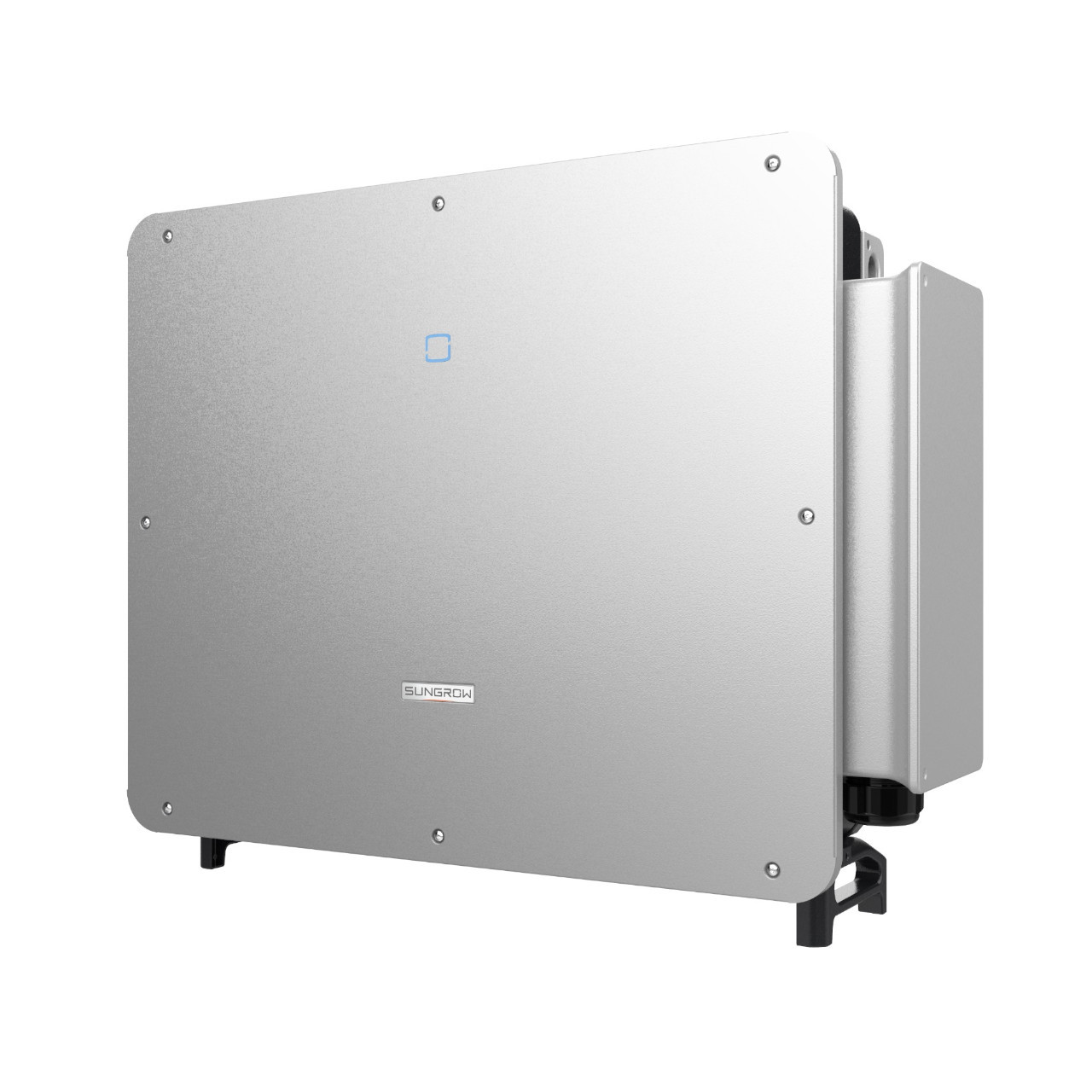

Product Description
HIGH YIELD
- Patented five-level neutral-free topology,
- 12 MPPTs, 2 strings each
- High Isc_max input current of 60A!
- Max. efficiency 99.02 %, CEC efficiency 98.5 %
- Full power operation without derating at 30 °C ambient temp.
- Patented anti-PID function
- AFCI integrated, can be used on rooftops.
EASY O&M
- High power, decentralized solution, easy for O&M (4 units per 1MWac)
- Compact design and light weight for easy installation
- Incredible 3kW per kg (most other inverters are <1kW/kg)
SAVED INVESTMENT
- DC 1500V, AC 800V, AC transformer to MV or step-down autoformer to your AC voltage is always needed!
- 1 to 5MW power block design for lower AC transformer and labor cost
- Max.DC/AC ratio up to 1.5
GRID SUPPORT
- Compliance with both CSA nd UL safety, certified to UL1741SA, soon UL1741SB available!
- Low/High voltage ride through(L/HVRT)
- Active & reactive power control and power ramp rate control
Warranty Information
| Warranty | 5 Years |
Product Videos
Product Reviews
Documentation
| Datasheet |  Datasheet_Sungrow_SG350HX-US--Datasheet-EN-AE-V012 |
| User Manual | Manual_Sungrow_SG350HX-US-SG200HX-US-UEN-Ver14-202305 |
| Quick Guide | QuickGuide_Sungrow_SG350HX-US_SG200HX-US-QIEN-Ver13-202305 |
Specs
| Power Output | 350kW |
| AC Voltage | 800V |
| DC Voltage | 1500V |
| Peak Efficiency | 99% |
| CEC Efficiency | 98.5% |
| Maximum DC Input Voltage | 1500V |
| Maximum Short Circuit DC Input Current | 60A x12 |
| Maximum Operation DC Input Current | 40A x12 |
| Number of MPPT's | 12 |
| MPP operating voltage window | 500-1500V |
| Connectivity | RS485 |
| Display | LED, Bluetooth + APP |
| Cooling Method | Smart forced air cooling |
Shipping Dimensions
| Weight: | 256.00 LBS |
| Width: | 114.00 (cm) |
| Height: | 87.00 (cm) |
| Depth: | 37.00 (cm) |
