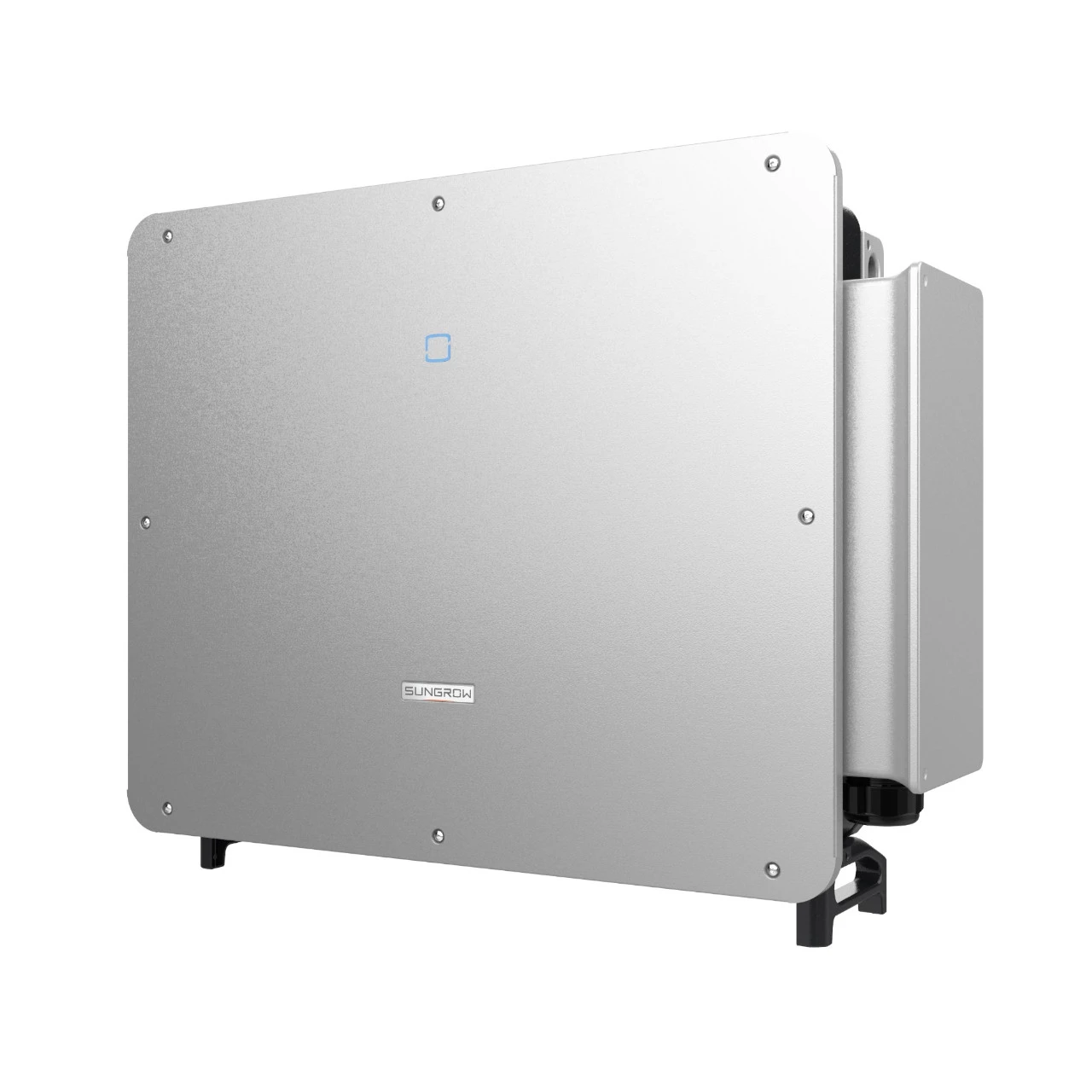

Product Description
HIGH YIELD
- Up to 12 MPPTs with max. efficiency 98.8%
- 20A per string, compatible with 500Wp+ module
- Data exchange with tracker system, improving yield
LOW COST
- Q at night function, save investment
- Power line communication ( PLC )
- Smart IV Curve diagnosis, active O&M
GRID SUPPORT
- SCR ≥ 1.15 stable operation in extremely weak grid
- Reactive power response time < 30 ms
PROVEN SAFETY
- 2 strings per MPPT, no fear of string reverse connection
- 24h real-time AC and DC insulation monitoring
Warranty Information
| Warranty | 5 Years |
Product Videos
Product Reviews
Documentation
Specs
| Power Output | 200kW |
| AC Voltage | 600V |
| DC Voltage | 1500V |
| Peak Efficiency | 99% |
| CEC Efficiency | 98.5% |
| Maximum DC Input Voltage | 1500V |
| Maximum Short Circuit DC Input Current | 60A x12 |
| Maximum Operation DC Input Current | 40A x12 |
| Number of MPPT's | 12 |
| MPP operating voltage window | 500-1500V |
| Connectivity | RS485 |
| Display | LED, Bluetooth + APP |
| Cooling Method | Smart forced air cooling |
Shipping Dimensions
| Weight: | 265.00 LBS |
| Width: | 120.00 (cm) |
| Height: | 87.00 (cm) |
| Depth: | 37.00 (cm) |
