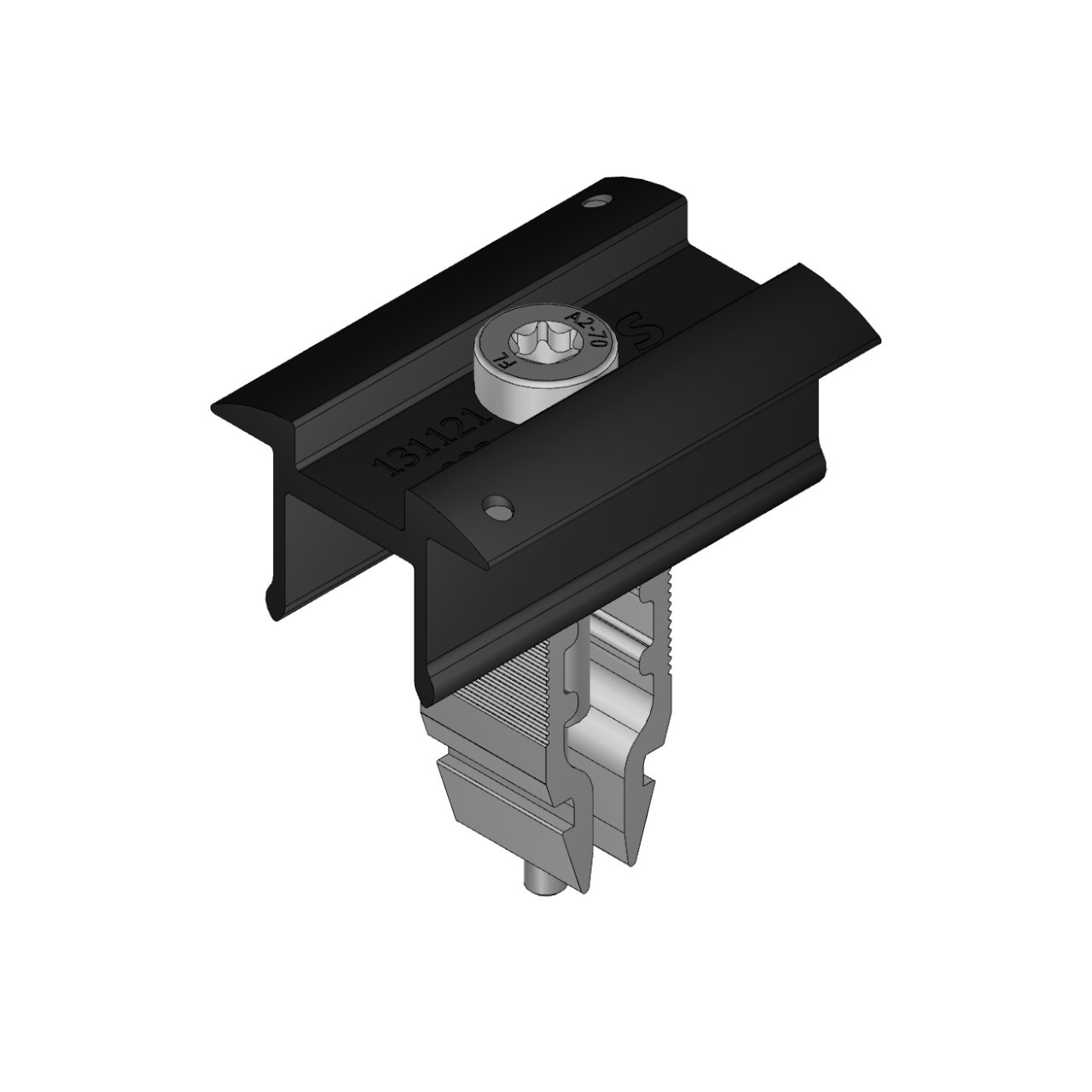

  • Schletter - Rapid16 Middle Clamp - 45
  • Schletter - Rapid16 Middle Clamp - Installed
  • Schletter - Rapid16 Middle Clamp - Profile
  • Schletter - Rapid16 Middle Clamp - Installed

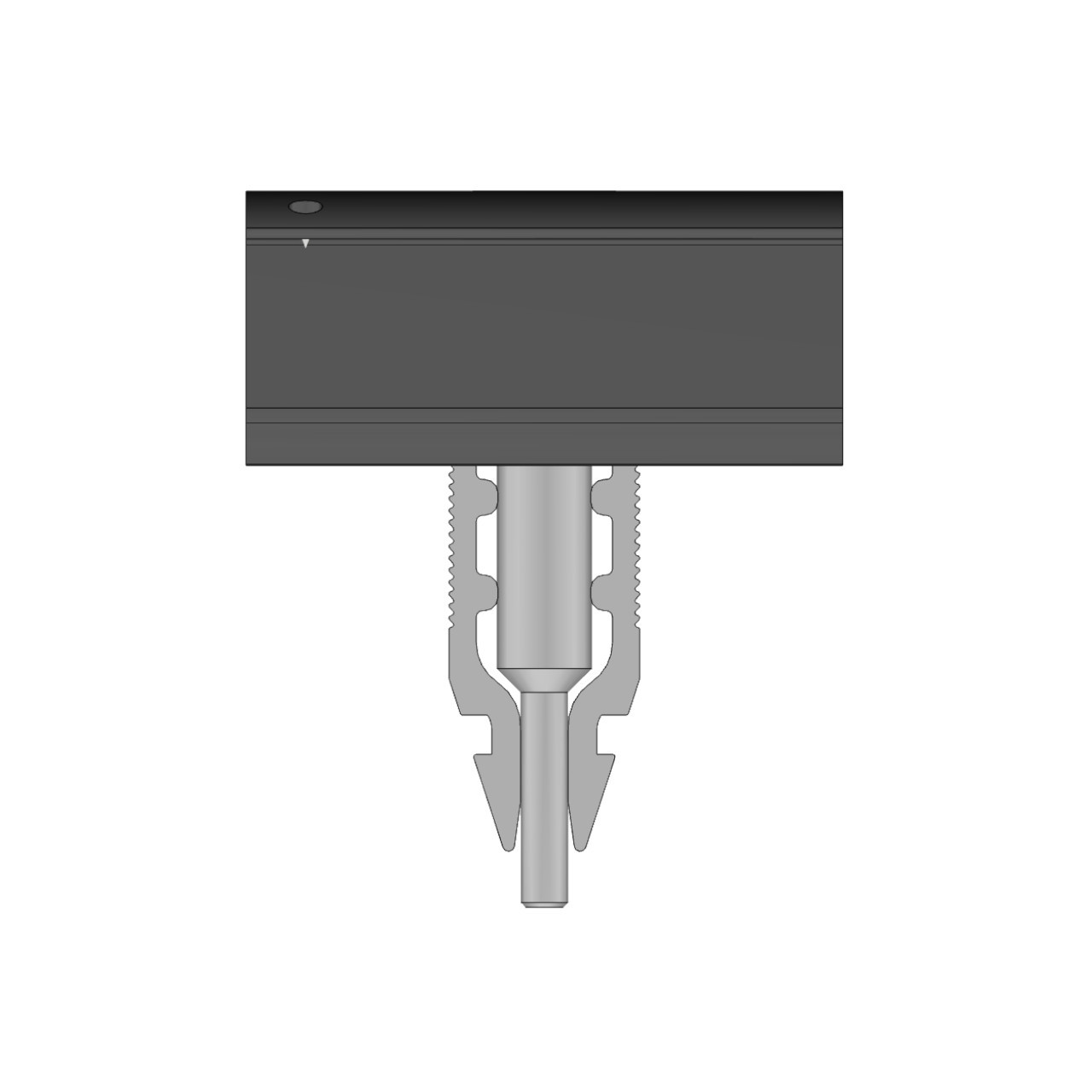

  • Schletter - Rapid16 Middle Clamp - Side

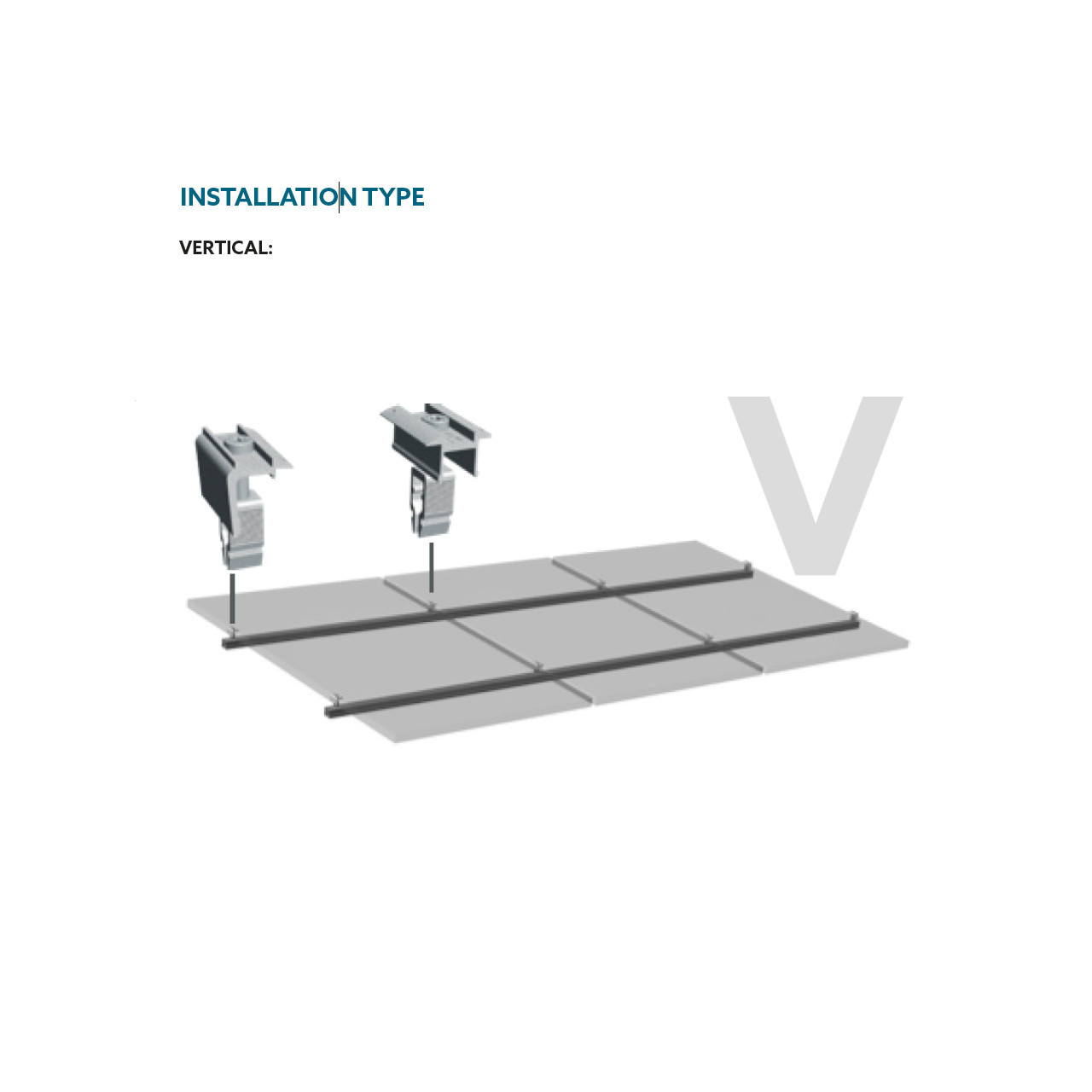

  • Schletter - Rapid16 Middle Clamp - Install Vertical

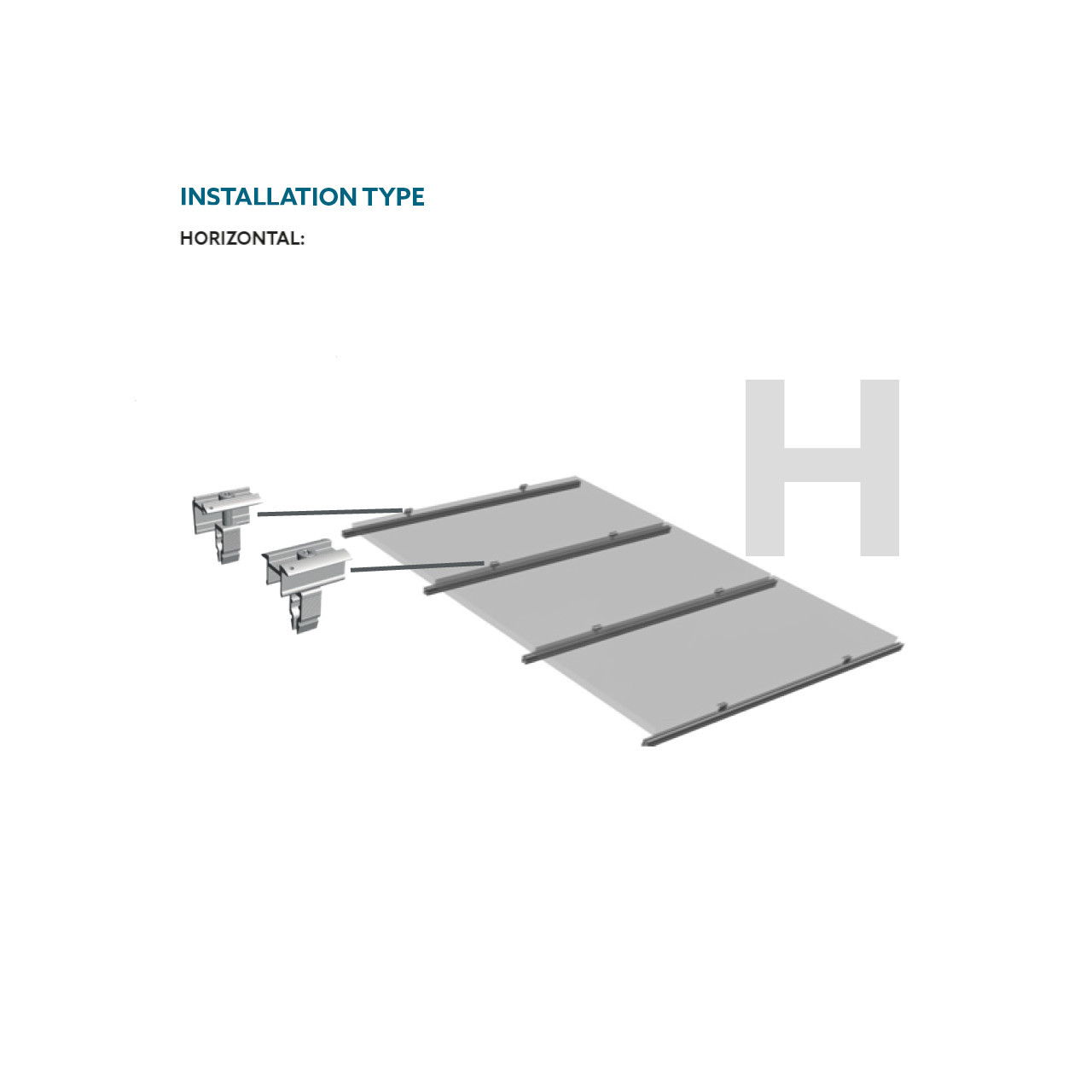

  • Schletter - Rapid16 Middle Clamp - Install Horizontal
  • Schletter - Rapid16 Middle Clamp - Install Vertical
  • Schletter - Rapid16 Middle Clamp - Install Horizontal

    • Schletter - Rapid16 Middle Clamp, 30-40mm - BLK

    $8.01
    SKU:
    5201263
    MPN:
    131121-901
    Availability:
    In Stock
    Category:
    Racking & Mounting/Flush-Mounted Rooftop

    3D Rendering Available in Documention Tab
    Adding to cart… category.add_cart_announcement

    Product Description

    Schletter - Rapid16 Middle Clamp, 30-40mm - BLK

    Aluminum middle and end clamps for framed modules which allow quick and simple mounting by clicking into mounting rails and provide optimal holding force.

    The New Family of Clamps

    Schletter's new Rapid16 family of modular clamps offers many advantages, such as better warehousing thanks to minimal versions, and a grounding pin in every module clamp. Rapid16 is right for any Schletter module-bearing profile with an 8 mm Klicknut and is designed for module frame heights of 30–40 mm.



    • Natural or black anodized aluminum
    • Minimal versions for all applications
    • Integrated grounding pin
    • Pre-assembled
    • Includes Torx M8 screw with under-head serration and anti-friction coating
    • General building approval Z14.4-631
    • 10-year warranty

    Warranty Information

    Warranty 10 Years

    Product Videos

    Custom Field

    doc_Installation Manual Install_Instuctions_Schletter_Rapid16-module-clamp-installation-guide-V0-I400339GB_(frankensolar)
    doc_Warranty PDF Warranty_Schletter_Components-20-Year-Limited-Warranty_(frankensolar)
    doc_App Note Product_Sheet_Schletter_Rapid-16-product-sheet-V1-400419EN_(frankensolar)
    doc3d_3D Rendering Schletter_131121-901-Mid-Rapid16-30-40-HV-Grounded-BA-3D_(frankensolar)
    Details 3 3D Rendering Available in Documention Tab
    Warranty 10 Years
    doc_Manual Schletter_Flushmount-Manual-2021-11-05_(frankensolar)

    Product Reviews

    Documentation

    Installation Manual   Rapid16-module-clamp-installation-guide-V0-I400339GB
    Warranty PDF   Components-20-Year-Limited-Warranty
    App Note   Rapid-16-product-sheet-V1-400419EN
    3D Rendering   131121-901-Mid-Rapid16-30-40-HV-Grounded-BA-3D
    Manual   Flushmount-Manual-2021-11-05
    3D PDF Guide         Guide to Opening 3D PDF Documents

    Specs

    Dimensions

    Shipping Dimensions

    Weight: 0.13 LBS
    Width: 4.74 (cm)
    Height: 4.74 (cm)
    Depth: 4.74 (cm)
